    70.08×52.56 mm Clear LB035Q04-TD08 LG Display 3.5 inch

    Ask Lasest Price
    Brand Name : LG Display
    Model Number : LB035Q04-TD08
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    70.08×52.56 mm Clear LB035Q04-TD08 LG Display 3.5 inch

    70.08×52.56 mm Clear LB035Q04-TD08 LG Display 3.5 inch

    Products Information:
    Panel Size :3.5 inch
    Dot Resolution :320(RGB)×240 (QVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :115 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.073×0.219 mm (H×V)
    Pixel Pitch :0.219×0.219 mm (H×V)
    Weight :35.0g (Typ.)
    Surface :Clear, Hard coating (3H)
    Active Area :70.08×52.56 mm (H×V)
    Bezel Area :72.48×55.26 mm (H×V)
    Outline Dimension :76.9×63.9 mm (H×V)
    Outline Depth :3.15±0.2 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Display Mode :TN, Normally White, Transmissive
    Brightness :370 cd/m² (Typ.)
    Contrast Ratio :400 : 1 (Typ.) (Transmissive)
    Display Color :16.7M ()
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :65/65/50/60 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.20/1.40 (Typ./Max.)(9 points)
    Sunlight Readable :N


    Our Promise for our LCD Panels:
    You will get reply within 24 Hours and:
    Œ Year warranty
    Œ Day shipping
    ‹ Return

    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.
    2. Anti-Shock Bubble Bag Packing
    3. Foam and Hard Carton Packing
    4. Picked up by forward and delivered by express services.

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LH250Q01-TH03LG Display2.5"320×240
    LH320H02-SH03LG Display3.2"320×480
    LC550EUJ-SER1LG Display55"1920×1080
    LC470EUJ-SER1LG Display47"1920×1080
    LH600WF3-SH01LG Display6.0"1080×1920
    LC470DUJ-SGE1LG Display47"1920×1080
    LM230WF5-TJF1LG Display23.0"1920×1080
    LC420DUJ-FFE1LG Display42"1920×1080
    LH530WX1-SH02LG Display5.3"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

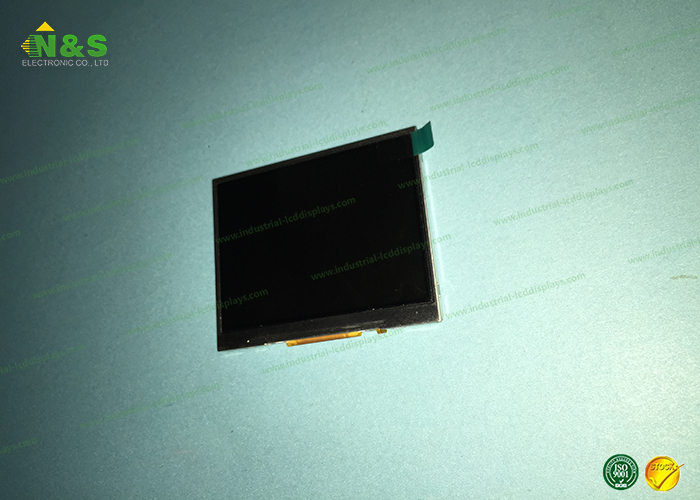

    LB035Q04-TD08 Picture
