NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS from wholesalers

    Buy cheap NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS from wholesalers
    • Buy cheap NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS from wholesalers

    NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL10276BC16-04
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS


    NL10276BC16-04 8.4 inch LCM NEC LCD Panel 1024×768 600/1 262K / 16.7M CCFL LVDS


    Our Services

    Payment:

    (1) Bank transfer , Western Union , T/T, Paypal are accepted.

    (2) If any problem of payment, you can contact with us.

    Shipment:

    (1) Worldwide shipping. Any delivery way you want to choose, please contact us.

    (2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.

    (3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.

    (4) Delivery time is approximate:

    ------Via DHL, Fedex, UPS: 3-7working days

    ------Via EMS:7-15 working days

    ------Via Direct Express Line:1-3 working days.


    NL10276BC16-04 Detail

    Panel Brand :NEC
    Panel Model :NL10276BC16-04
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :8.4 inch
    Resolution :1024(RGB)×768 , XGA
    Display Mode :UA-SFT, Normally Black, Transmissive
    Active Area :170.496×127.872 mm
    Contrast Ratio :600:1 (Typ.)
    Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Response Time :13/12 (Typ.)(Tr/Td)
    Viewing Angle :88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :2 pcs CCFL
    Signal Interface :LVDS (1 ch, 6/8-bit)
    Input Voltage :3.3V (Typ.)

    Panel Size :8.4 inch
    Dot Resolution :1024(RGB)×768 (XGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :152 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0555×0.1665 mm (H×V)
    Pixel Pitch :0.1665×0.1665 mm (H×V)
    Active Area :170.496×127.872 mm (H×V)
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED0970C1E Ink9.7"1200×825
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234
    P1924QC1E Ink2.4"240×320
    PM049OX1E Ink4.9"266×600
    V1835HC1H1E Ink3.5"320×480

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.

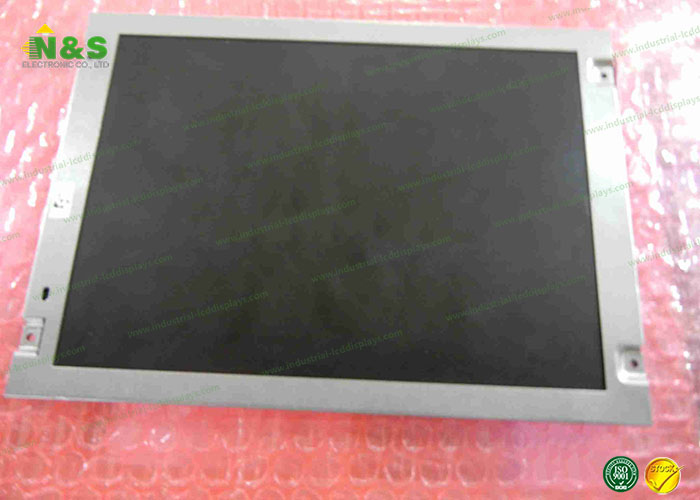

    NL10276BC16-04 NEC LCD Panel Picture
