    NL12876AC18-03 10.6 inch TFT LCD Module NLT Normally Black with 230.4×138.24 mm

    Ask Lasest Price
    Brand Name : NLT
    Model Number : NL12876AC18-03
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3WORK DAY
    • Product Details
    • Company Profile

    NL12876AC18-03 10.6 inch TFT LCD Module NLT Normally Black with 230.4×138.24 mm

    NL12876AC18-03 10.6 inch TFT LCD Module NLT Normally Black with 230.4×138.24 mm


    NL12876AC18-03 Specification

    Panel Size :10.6 inch
    Dot Resolution :1280(RGB)×768 (WXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :141 PPI
    Aspect Ratio :15:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.060×0.180 mm (H×V)
    Pixel Pitch :0.180×0.180 mm (H×V)
    Weight :270/295g (Typ./Max.)
    Surface :Clear, Hard coating (3H)
    Active Area :230.4×138.24 mm (H×V)
    Bezel Area :233.4×141.3 mm (H×V)
    Outline Dimension :248.8×155.8 mm (H×V)
    Outline Depth :6.5±0.5 mm
    Holes & Brackets :Side mounting holes (4-M2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :UA-SFT, Normally Black, Transmissive
    Brightness :300 cd/m² (Typ.)
    Contrast Ratio :1000 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut :40% NTSC (CIE1931)
    Response Time :13/12 (Typ.)(Tr/Td)
    Viewing Angle :88/88/88/88 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.25/1.40 (Typ./Max.)(5 points)
    Sunlight Readable :N

    What is our advantage?

    Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

    Delivery Quantity: 50-100 cartons shipped by DHL every week

    Supply Ability: 100 pcs Panels per day.

    Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

    Warranty: 12 months.


    FAQ

    1. Q: Where can I get the price?

    A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

    2. Q: How can I get a sample to check your quality?

    A: After price confirmation, you can require for samples to check our quality.

    3. Q: What about the lead time for mass production?

    A: It depends on your order quantity and the season you place the order.

    4. Q: What are your terms of payment?

    A: We accept T/T, Western Union, MoneyGram, PayPal.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    ED133TT1E Ink13.3"2200×1650
    ED060SD1E Ink6.0"600×800
    ED060SCTE Ink6.0"600×800
    ET043OC1E Ink4.4"360×640
    EN133UT1E Ink13.3"1600×1200
    ED047TC1E Ink4.7"540×960
    ED133UT1E Ink13.3"1600×1200
    ES133UT1E Ink13.3"1600×1200
    ED060SCQE Ink6.0"600×800
    ED097OD2E Ink9.7"1200×825

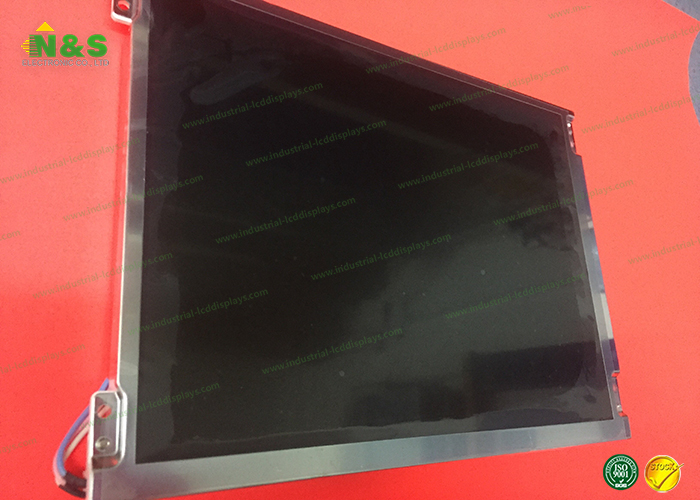

    NL12876AC18-03 Picture
