Normally White MT190AW02 V.W Innolux LCD Panel , Hard coating tft lcd module

    Buy cheap Normally White MT190AW02 V.W Innolux LCD Panel , Hard coating tft lcd module from wholesalers

    Buy cheap Normally White MT190AW02 V.W Innolux LCD Panel , Hard coating tft lcd module from wholesalers
    • Buy cheap Normally White MT190AW02 V.W Innolux LCD Panel , Hard coating tft lcd module from wholesalers

    Normally White MT190AW02 V.W Innolux LCD Panel , Hard coating tft lcd module

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : MT190AW02 V.W
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    Normally White MT190AW02 V.W Innolux LCD Panel , Hard coating tft lcd module

    Normally White MT190AW02 V.W Hard coating Innolux LCD Panel 19.0 inch


    MT190AW02 V.W Product Information

    Panel Brand :INNOLUX
    Panel Model :MT190AW02 V.W
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :19.0 inch
    Resolution :1440(RGB)×900 , WXGA+
    Display Mode :TN, Normally White, Transmissive
    Active Area :408.24×255.15 mm
    Outline :428×278 mm
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :16.7M (6-bit + Hi-FRC) , CIE1931 68%
    Response Time :1.5/3.5 (Typ.)(Tr/Td)
    Viewing Angle :85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :5 strings WLED Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)

    Packaging & Shipping:

    Delivery Information:
    Our professional testing team will test the LCD panels pcs by pcs, to make sure the LCD screen sent out are with good quality.
    Shipping Method:
    By Express: FedEx, DHL, EMS, TNT, UPS,
    By Logistics: By air
    Shipping Time:
    From Monday to Saturday 8:00am-17:30pm
    Shipping Address:
    If by T/T, shipping address as communicate.


    FAQ

    Q1: What's price?

    A1: We provide reasonable price and recommend suitable batteries to our customers.

    Q2: What's delivery time?

    A2: The delivery time is normally 1-3 working days after payment.

    Q3: What's the payment?

    A3: We accept T/T, Western Union, MoneyGram, Paypal

    Q4: Can we visit your factory?

    A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.


    Panel Size :19.0 inch
    Dot Resolution :1440(RGB)×900 (WXGA+)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :89 PPI
    Aspect Ratio :16:10 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0945×0.2835 mm (H×V)
    Pixel Pitch :0.2835×0.2835 mm (H×V)
    Weight :2.20Kgs (Max.)
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :408.24×255.15 mm (H×V)
    Bezel Area :412.24×259.15 mm (H×V)
    Outline Dimension :428×278 mm (H×V)
    Outline Depth :16.0 (Typ.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Below are our other LCD panels stock for your easy reference:

    BRANDP/Nsizequantity
    InnoluxG104S1-L0110.4"500
    InnoluxG150XGE-L0515.0"500
    InnoluxG057VGE-T015.7"852
    InnoluxG070Y2-T027.0"2320
    InnoluxG070Y3-T017.0"1580
    InnoluxG104S1-L0110.4"850
    InnoluxG141C1-L0114.1"450
    InnoluxR190E6-L0119.0"150
    InnoluxR196U2-L0319.6"450

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

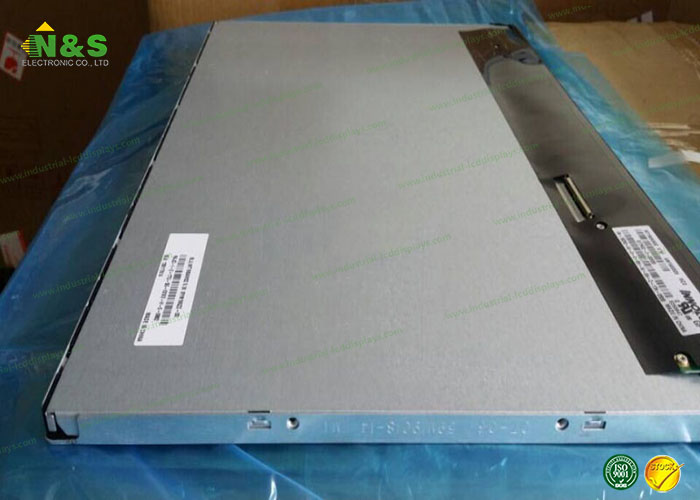

    MT190AW02 V.W Innolux LCD Panel Picture
