17.0 Inch MT170EN01 V.C Innolux LCD Panel Normally White for all Desktop Monitor

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 17.0 Inch MT170EN01 V.C Innolux LCD Panel Normally White for all Desktop Monitor from wholesalers

    Buy cheap 17.0 Inch MT170EN01 V.C Innolux LCD Panel Normally White for all Desktop Monitor from wholesalers
    • Buy cheap 17.0 Inch MT170EN01 V.C Innolux LCD Panel Normally White for all Desktop Monitor from wholesalers

    17.0 Inch MT170EN01 V.C Innolux LCD Panel Normally White for all Desktop Monitor

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : MT170EN01 V.C
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    17.0 Inch MT170EN01 V.C Innolux LCD Panel Normally White for all Desktop Monitor

    17.0 inch MT170EN01 V.C Innolux Normally White LCD Panel for all Desktop Monitor panel


    MT170EN01 V.C Information

    Panel Brand :INNOLUX
    Panel Model :MT170EN01 V.C
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :17.0 inch
    Resolution :1280(RGB)×1024 , SXGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :337.92×270.336 mm
    Outline :358.5×296.5×16.5 mm
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Brightness :300 cd/m² (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :16.7M (6-bit + Hi-FRC) , CIE1931 72%
    Response Time :1/4 (Typ.)(Tr/Td)
    Viewing Angle :80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :4 pcs CCFL Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)

    Panel Size :17.0 inch
    Dot Resolution :1280(RGB)×1024 (SXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :96 PPI
    Aspect Ratio :5:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.088×0.264 mm (H×V)
    Pixel Pitch :0.264×0.264 mm (H×V)
    Weight :2.00Kgs (Max.)
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :337.92×270.336 mm (H×V)
    Outline Dimension :358.5×296.5 mm (H×V)
    Outline Depth :16.0±0.5 mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Our Service

    • Long lasting product cycle for continuity thru all phases of project rollouts and servicing

    • Competitive price for different brands hard disk.

    • Mass stock with the better price.

    • Multiple options.

    • Warranty service.

    • Better team to provide the before-sales, on-sale and after-sale service

    • Pls send us message if any hard disk needed.


    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    V650DJ4-QS5 Rev.M1Innolux65"3840×2160
    N080ICP-G01 CELLInnolux8.0"800×1280
    DE080NA-01DInnolux8.0"800×480
    AT080YN01Innolux8.0"1024×600
    PG055IA-03HInnolux5.5"720×1280
    PP057IC-01AInnolux5.7"1080×1920
    PG055IC-07FInnolux5.5"1080×1920
    PB050IC-01DInnolux5.0"1080×1920
    PG050IA-02AInnolux5.0"540×960

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

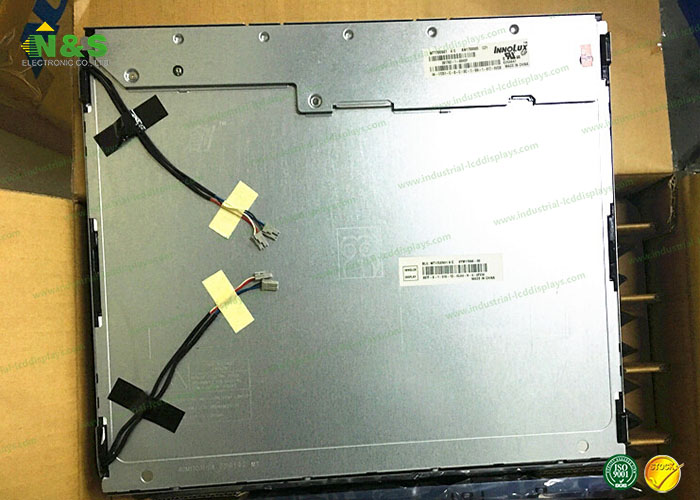

    MT170EN01 V.C Innolux LCD Panel Picture
