    NL8060BC31-36 color lcd module 12.1" LCM 800×600 1100 600:1 262K CCFL TTL

    Ask Lasest Price
    Brand Name : NEC
    Model Number : NL8060BC31-36
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

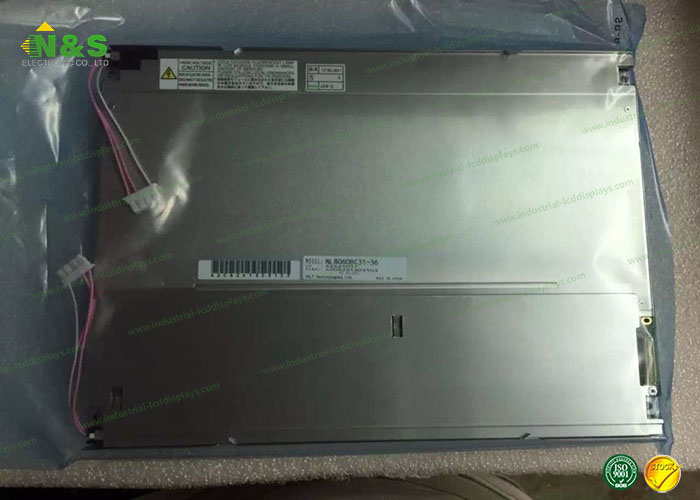

    NL8060BC31-36 color lcd module 12.1" LCM 800×600 1100 600:1 262K CCFL TTL

    NL8060BC31-36 NEC LCD Panel 12.1" LCM 800×600 1100 600:1 262K CCFL TTL


    Panel Size :12.1 inch
    Dot Resolution :800(RGB)×600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :82 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.1025×0.3075 mm (H×V)
    Pixel Pitch :0.3075×0.3075 mm (H×V)
    Weight :900/930g (Typ./Max.)
    Surface :Clear, Hard coating (3H)
    Active Area :246×184.5 mm (H×V)
    Bezel Area :249.0×187.5 mm (H×V)
    Outline Dimension :280×209 mm (H×V)
    Outline Depth :16.5±0.5 mm
    Holes & Brackets :Face mounting holes (4-Φ3.5) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Display Mode :TN, Normally White, Transmissive
    Brightness :1100 cd/m² (Typ.)
    Contrast Ratio :600 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Color Gamut :40% NTSC (CIE1931)
    Response Time :8/25 (Typ.)(Tr/Td)
    Viewing Angle :70/70/45/55 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.25/1.40 (Typ./Max.)(5 points)
    Sunlight Readable :Y
