Brand Name : | Innolux |
Model Number : | M236HGJ-L21 |
Certification : | ISO9001 |
Payment Terms : | T/T, Western Union, MoneyGram |
Delivery Time : | 1-3 Working Days |
Supply Ability : | 500PCS/DAY |
M236HGJ-L21 23.6 inch Innolux LCD Panel Hard coating for all Desktop Monitor panel
M236HGJ-L21 Specification
Panel Brand : | CHIMEI INNOLUX |
Panel Model : | M236HGJ-L21 |
Panel Type : | a-Si TFT-LCD , LCM |
Panel Size : | 23.6 inch |
Resolution : | 1920(RGB)×1080 , FHD |
Display Mode : | TN, Normally White, Transmissive |
Active Area : | 521.28×293.22 mm |
Outline : | 544.8×320.5 mm |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 1000:1 (Typ.) |
Display Colors : | 16.7M (8-bit) , CIE1931 72% |
Response Time : | 1.5/3.5 (Typ.)(Tr/Td) |
Viewing Angle : | 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | 4 strings WLED Without Driver |
Signal Interface : | LVDS (2 ch, 8-bit) , 30 pins |
Input Voltage : | 5.0V (Typ.) |
After-sale service:
1.Our products have two years warranty service ,lifetime free
maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance
guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and
maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all
maintenance charges; After Maintenance period, only charge the
material costs fees free of manual work fees.
5.Full set of documents free of charge, which including
installation guidance, software operation manual, easy maintenance
manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please
contact with our company, we can response in 24 hours. In order to
shorten the maintenance time, Our Company will deploy some spare
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich
experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within
24hours once receiving the payment. Tracking number would be
informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers
encountered!
Panel Size : | 23.6 inch |
Dot Resolution : | 1920(RGB)×1080 (FHD) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 93 PPI |
Aspect Ratio : | 16:9 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.0905×0.2715 mm (H×V) |
Pixel Pitch : | 0.2715×0.2715 mm (H×V) |
Weight : | 2.06/2.16Kgs (Typ./Max.) |
Surface : | Antiglare (Haze 25%), Hard coating (3H) |
Active Area : | 521.28×293.22 mm (H×V) |
Bezel Area : | 525.22×297.22 mm (H×V) |
Outline Dimension : | 544.8×320.5 mm (H×V) |
Outline Depth : | 9.0±0.5 mm |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |
Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk
Panel Model | Brand | Size | Resolution |
M190A1-P01 | Innolux | 19.0" | 1440×900 |
V156B2-P02 | Innolux | 15.6" | 1366×768 |
N154I2-P05 | Innolux | 15.4" | 1280×800 |
C03024-01Z | Innolux | 3.0" | 960×480(dot) |
G121IJ1-P01 | Innolux | 12.1" | 1280×800 |
F04307-06Z | Innolux | 4.3" | 480×800 |
CG043JN16 | Innolux | 4.3" | 480×800 |
F04008-01U | Innolux | 4.0" | 480×800 |
N156BGE-P21 | Innolux | 15.6" | 1366×768 |
F04801-01Z | Innolux | 4.8" | 540×960 |
N133HSG-D31 | Innolux | 13.3" | 1920×1080 |
N133HSE-D31 | Innolux | 13.3" | 1920×1080 |

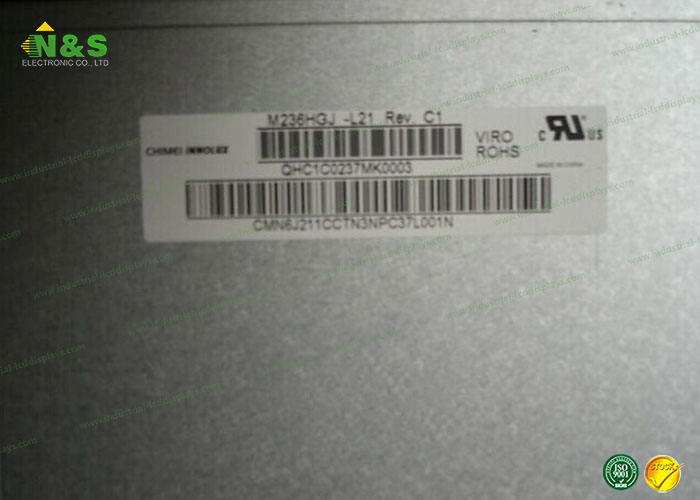

M236HGJ-L21 Innolux LCD Panel Picture
![]() |
