10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black

    Buy cheap 10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black from wholesalers

    Buy cheap 10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black from wholesalers
    • Buy cheap 10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black from wholesalers

    10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : HJ101IA-01D
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black

    10.1 inch HJ101IA-01D Innolux LCD Panel Normally Black

    Products Information:
    Panel Size :10.1 inch
    Dot Resolution :1280(RGB)×800 (WXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :149 PPI
    Aspect Ratio :16:10 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0565×0.1695 mm (H×V)
    Pixel Pitch :0.1695×0.1695 mm (H×V)
    Weight :
    TBD
    Surface :Hard coating
    Active Area :216.96×135.6 mm (H×V)
    Outline Dimension :238.26×157.5 mm (H×V)
    Outline Depth :2.35/4.31 (Typ./Max.) mm
    Holes & Brackets :Face mounting holes (8 pcs) on left, right, up, down slugs
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Display Mode :
    IPS, Normally Black, Transmissive
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :1000 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    White color Chromaticity :
    Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(13 points)
    Sunlight Readable :N

    Our service

    1. Agent Brand:

    * Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

    2. Quality to be guaranteed:

    * All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

    * Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

    1. Quickly delivery:

    * We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

    1. long-term partner:

    * Products are sold to more than 20 countries.

    1. Super After-Sale service:

    * One year warranty .

    6. The best TFT LCD solution:

    *more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

    To get the latest prices, pls feel free to contact us.


    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Antistatic bag

    2. Layers of cartons

    3. Foam Box

    4. Carton Box.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    V156B2-P02Innolux15.6"1366×768
    N154I2-P05Innolux15.4"1280×800
    C03024-01ZInnolux3.0"960×480(dot)
    G121IJ1-P01Innolux12.1"1280×800
    F04307-06ZInnolux4.3"480×800
    CG043JN16Innolux4.3"480×800
    F04008-01UInnolux4.0"480×800
    N156BGE-P21Innolux15.6"1366×768
    F04801-01ZInnolux4.8"540×960

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

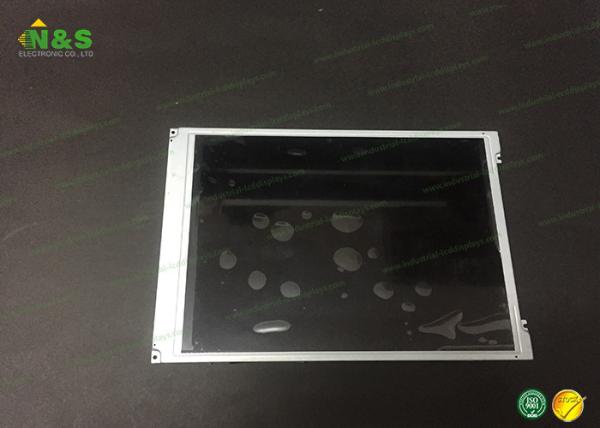

    HJ101IA-01D Picture
