    Normally White 22.0 inch M220Z3-LA3 Innolux LCD Panel with 473.76×296.1 mm Active Area

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : M220Z3-LA3
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    Normally White 22.0 inch M220Z3-LA3 Innolux LCD Panel with 473.76×296.1 mm Active Area

    Normally White 22.0 inch M220Z3-LA3 Innolux LCD Panel with 473.76×296.1 mm Active Area


    FAQ

    Q1: How do we place an order?

    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

    Q2: How do we make the payment?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: What's the delivery time?

    A3: The delivery time is normally 1-3 working days after payment.

    Q4: How would the goods be shipped?

    A4: We ship via DHL, UPS, TNT and others.


    Our Service

    1. Small quantity also can be provided.

    2. New models can be updated fast.
    3. We have strict QC team to make sure all products are qualified before delivery.
    4. Warranty promise

    5. Sourcing line for different hard disks for different brands.


    M220Z3-LA3 Specification

    Panel Brand :CHIMEI INNOLUX
    Panel Model :M220Z3-LA3
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :22.0 inch
    Resolution :1680(RGB)×1050 , WSXGA+
    Display Mode :TN, Normally White, Transmissive
    Active Area :473.76×296.1 mm
    Outline :493.7×320.1×11.5 mm
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :1000:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 72%
    Response Time :1.3/3.7 (Typ.)(Tr/Td)
    Viewing Angle :85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :14S8P WLED Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)

    Panel Size :22.0 inch
    Dot Resolution :1680(RGB)×1050 (WSXGA+)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :90 PPI
    Aspect Ratio :16:10 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.094×0.282 mm (H×V)
    Pixel Pitch :0.282×0.282 mm (H×V)
    Weight :2.20/2.29Kgs (Typ./Max.)
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :473.76×296.1 mm (H×V)
    Bezel Area :477.7×300.1 mm (H×V)
    Outline Dimension :493.7×320.1 mm (H×V)
    Outline Depth :11.5 (Max.) mm
    Holes & Brackets :Side mounting holes (8-M2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    N156BGE-PA1Innolux15.6"1366×768
    V500HK3-PS1Innolux50"1920×1080
    M280DGJ-Q02Innolux28.0"3840×2160
    V290BJ1-PE2Innolux29.0"1366×768
    V420DK1-QS1Innolux42"3840×2160
    PG045IC-01DInnolux4.5"720×1280
    M236HJJ-P02Innolux23.6"1920×1080
    F060A09-603Innolux6.0"720×1280
    EE030IA-06AInnolux3.0"640×480
    C03028-02ZInnolux3.0"480×640
    N070ICE-HB1Innolux7.0"800×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

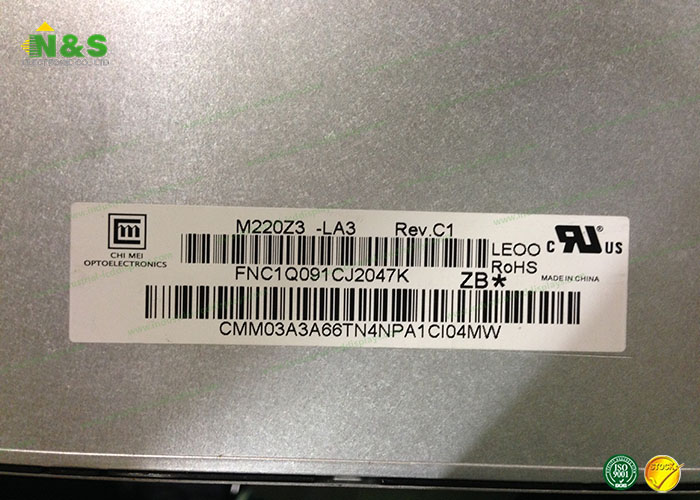

    M220Z3-LA3 Innolux LCD Panel Picture
