22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor

    Buy cheap 22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor from wholesalers

    Buy cheap 22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor from wholesalers
    • Buy cheap 22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor from wholesalers

    22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : M220Z1-L01
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor

    22.0 inch CMO M220Z1-L01 LCD Panel 473.76×296.1 mm for Desktop Monitor


    M220Z1-L01 LCD Panel Detail

    Panel Brand :CMO
    Panel Model :M220Z1-L01
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :22.0 inch
    Resolution :1680(RGB)×1050 , WSXGA+
    Display Mode :TN, Normally White, Transmissive
    Active Area :473.76×296.1 mm
    Outline :493.7×320.1 mm
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Brightness :300 cd/m² (Typ.)
    Contrast Ratio :800:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 70%
    Response Time :2/3 (Typ.)(Tr/Td)
    Viewing Angle :85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :4 pcs CCFL Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.


    Panel Size :22.0 inch
    Dot Resolution :1680(RGB)×1050 (WSXGA+)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :90 PPI
    Aspect Ratio :16:10 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.094×0.282 mm (H×V)
    Pixel Pitch :0.282×0.282 mm (H×V)
    Weight :2.80Kgs (Max.)
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :473.76×296.1 mm (H×V)
    Bezel Area :477.7×300.1 mm (H×V)
    Outline Dimension :493.7×320.1 mm (H×V)
    Outline Depth :16.5±0.5 mm
    Holes & Brackets :Side mounting holes (8 pcs)
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Our Services

    1. Quick and accurate reply with best service attidue to our business

    2. Pofessional advise

    3. Quick PI confirmation

    4. Close production follow up and production process feedback

    5. Safe package

    6. Get feekback from your side when items arrived,

    7. 24 months warranty for items


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234
    P1924QC1E Ink2.4"240×320
    PM049OX1E Ink4.9"266×600
    V1835HC1H1E Ink3.5"320×480
    PW100XU2E Ink10.0"640×468
    PW090XUDE Ink9.0"640×220

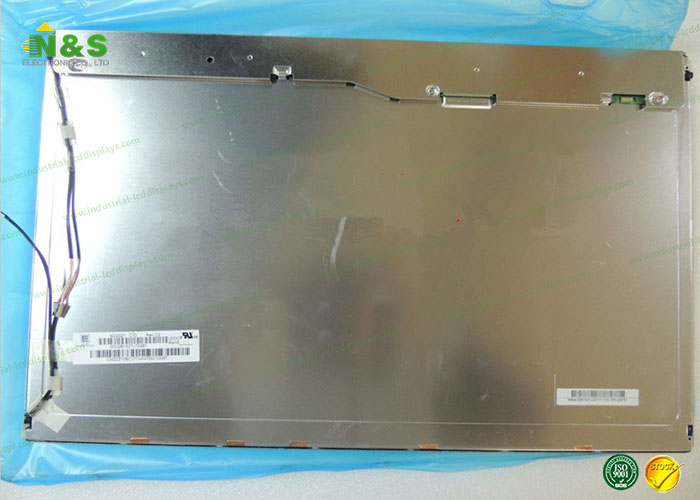

    M220Z1-L01 Innolux LCD Panel Picture
