4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL from wholesalers

    Buy cheap 4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL from wholesalers
    • Buy cheap 4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL from wholesalers

    4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : LR430LC9001
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3WORK DAY
    • Product Details
    • Company Profile

    4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL

    4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL


    Our service

    1. Agent Brand:

    * Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

    2. Quality to be guaranteed:

    * All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

    * Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

    1. Quickly delivery:

    * We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

    1. long-term partner:

    * Products are sold to more than 20 countries.

    1. Super After-Sale service:

    * One year warranty .

    6. The best TFT LCD solution:

    *more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

    To get the latest prices, pls feel free to contact us.


    LR430LC9001 Product Information


    Panel Size :4.3 inch
    Dot Resolution :480(RGB)×272 (WQVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :128 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.066×0.198 mm (H×V)
    Pixel Pitch :0.198×0.198 mm (H×V)
    Weight :45g (Typ.)
    Surface :Antiglare
    Active Area :95.04×53.856 mm (H×V)
    Bezel Area :98.7×57.4 mm (H×V)
    Outline Dimension :105.5×67.2 mm (H×V)
    Outline Depth :2.9±0.15 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :550 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Response Time :15/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/55/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.25/1.33 (Typ./Max.)
    Sunlight Readable :N

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    P079ZCZ-3Z2Innolux7.9"768×1024
    M315DJJ-Q01Innolux31.5"3840×2160
    V320BJ6-Q01Innolux31.5"1366×768
    V650DK2-QS2Innolux65"3840×2160
    F055A15-6T1Innolux5.5"720×1280
    F050A19-601Innolux5.5"720×1280
    HE101IA-01RInnolux10.1"1280×800
    F055A13-6T1Innolux5.5"720×1280
    F050A13-604Innolux5.0"720×1280
    V650DK6-QS1Innolux65"3840×2160
    M238HCJ-P03Innolux23.8"1920×1080
    V400HJ6-PE1 Rev.C2Innolux40"1920×1080

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    Shipment for the LCD Display Panels:

    1. Safe & Professional package for our LCD panels.

    2. We can ship to you by UPS/FEDEX/DHL/TNT and so on. Other shipping terms can also be arranged according to specific requirements.

    3. We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service.

    4. All our LCD panel will be tested pcs by pcs before been shipped out.

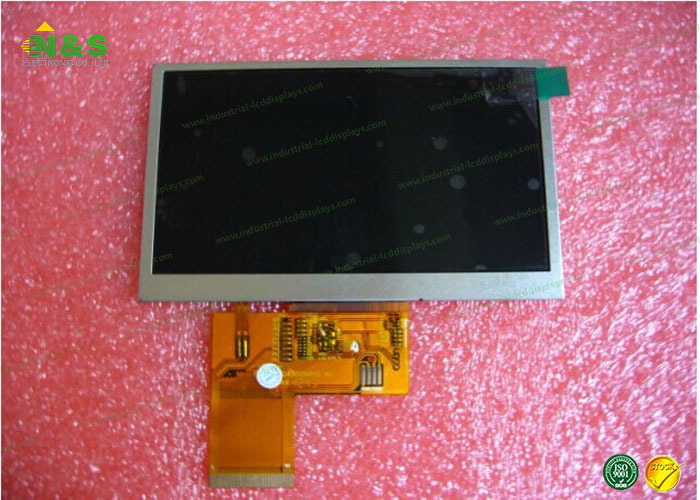

    LR430LC9001 Picture


    Product Tags:

    tft lcd display



    innolux lcd screen


    Quality 4.3 inch LR430LC9001 Innolux LCD Panel Innolux Normally White LCM 480×272 350 550:1 16.7M WLED TTL for sale
