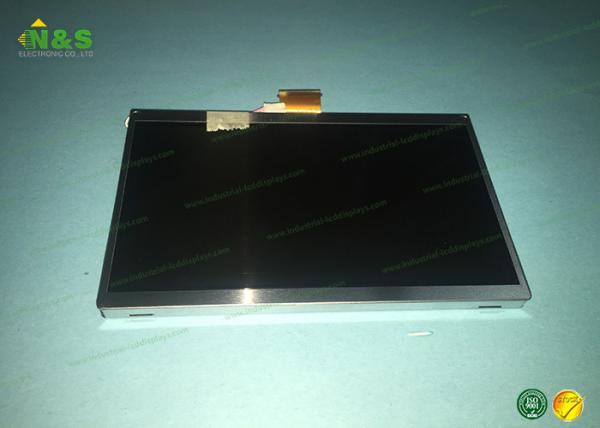

154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White from wholesalers

    Buy cheap 154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White from wholesalers
    • Buy cheap 154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White from wholesalers

    154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : AT070TN01 V.2
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White

    154.08×86.58 7.0 Inch digital camera lcd screen AT070TN01 V.2 Normally White

    FAQ
    Q1: How do we place an order?
    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
    Q2: How do we make the payment?
    A2: We accept T/T, Western Union, MoneyGram, Paypal.
    Q3: What's the delivery time?
    A3: The delivery time is normally 1-3 working days after payment.
    Q4: How would the goods be shipped?
    A4: We ship via DHL, UPS, TNT and others.

    Packaging & Delivery
    Packaging Details:
    Safey package
    Plastic trays inside
    2 layes of cartons
    Fragile sign on top
    Can be customize 3.5 inch spare parts auo used lcd panel
    Delivery Detail: 1-3 Working Days

    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    P079ZCZ-3Z2Innolux7.9"768×1024
    M315DJJ-Q01Innolux31.5"3840×2160
    V320BJ6-Q01Innolux31.5"1366×768
    V650DK2-QS2Innolux65"3840×2160
    F055A15-6T1Innolux5.5"720×1280
    F050A19-601Innolux5.5"720×1280
    HE101IA-01RInnolux10.1"1280×800
    F055A13-6T1Innolux5.5"720×1280

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    AT070TN01 V.2 Specification

    Panel Size :7.0 inch
    Dot Resolution :480(RGB)×234
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :76 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.107×0.370 mm (H×V)
    Pixel Pitch :0.321×0.370 mm (H×V)
    Weight :160g (Typ.)
    Surface :Antiglare
    Active Area :154.08×86.58 mm (H×V)
    Outline Dimension :164.9×100 mm (H×V)
    Outline Depth :5.7 (Typ.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :150 : 1 (Typ.) (Transmissive)
    Display Color :Full color ()
    Response Time :15/20 (Typ.)(Tr/Td)
    Viewing Angle :60/60/40/60 (Min.)(CR≥10) (L/R/U/D)
    Viewing Direction :4:30 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N
