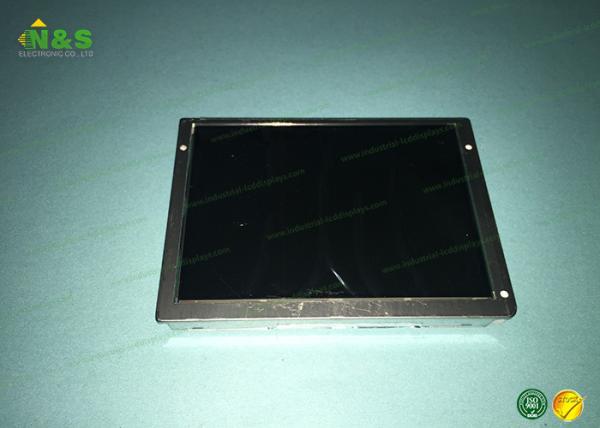

AT050TN23 V.5 5.0 inch Innolux LCD Panel LCM 640×480 Resolution 350

    Buy cheap AT050TN23 V.5 5.0 inch Innolux LCD Panel LCM 640×480 Resolution 350 from wholesalers

    Buy cheap AT050TN23 V.5 5.0 inch Innolux LCD Panel LCM 640×480 Resolution 350 from wholesalers
    • Buy cheap AT050TN23 V.5 5.0 inch Innolux LCD Panel LCM 640×480 Resolution 350 from wholesalers

    AT050TN23 V.5 5.0 inch Innolux LCD Panel LCM 640×480 Resolution 350

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : AT050TN23 V.5
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    AT050TN23 V.5 5.0 inch Innolux LCD Panel LCM 640×480 Resolution 350

    AT050TN23 V.5 Innolux LCD Panel Innolux 5.0 inch Normally White LCM 640×480 350 500:1 16.7M WLED TTL


    AT050TN23 V.5 Specification


    Panel Size :5.0 inch
    Dot Resolution :640(RGB)×480 (VGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :160 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0529×0.1587 mm (H×V)
    Pixel Pitch :0.1587×0.1587 mm (H×V)
    Weight :85g (Typ.)
    Surface :Antiglare
    Active Area :101.568×76.176 mm (H×V)
    Bezel Area :105.6×80.2 mm (H×V)
    Outline Dimension :117.65×88.43 mm (H×V)
    Outline Depth :7.9/10.3 (Typ./Max.) mm
    Holes & Brackets :Face mounting holes (4 pcs) on left, up, down slugs
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :65/65/65/45 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N

    Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

    We can do for you:

    1. Provide excellent LCD screen replacements with competitive price.
    2. Safe, quick and efficient supply chain.
    3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
    4. Your problems will be replied within 24 hours.

    FAQ

    Q1: Can I place sample order first?

    A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

    Q2: How could I pay them?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: How to place the order?

    A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

    Q4: How long can I get my order?

    A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

    Q5: How to send us the products?

    A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.


    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    PG050IA-02AInnolux5.0"540×960
    V400DK1-QE2Innolux40"3840×2160
    V650DK1-QS3Innolux65"3840×2160
    V400HK7-PE1Innolux40"1920×1080
    V580DJ2-QS5Innolux58"3840×2160
    F060A09-6T2Innolux6.0"720×1280
    M238HCJ-P02Innolux23.8"1920×1080
    ME270NA-01AInnolux27.0"1920×1080
