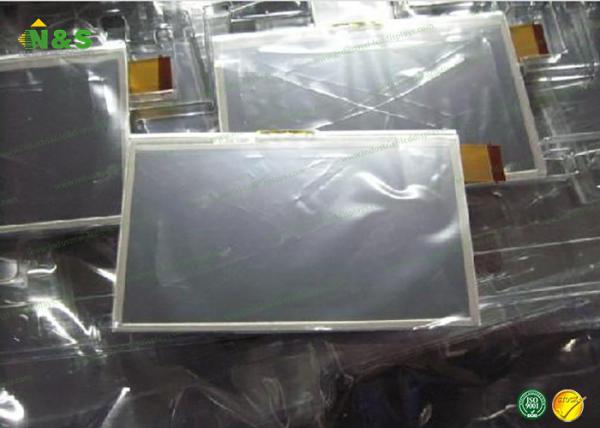

    TM043NBH01 4.3 inch 480×272 anti glare lcd screen with 95.04×53.856 mm Active Area

    Ask Lasest Price
    Brand Name : Tianma
    Model Number : TM043NBH01
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    TM043NBH01 4.3 inch 480×272 anti glare lcd screen with 95.04×53.856 mm Active Area

    TM043NBH01 Tianma LCD Displays Tianma 4.3 inch LCM 480×272 with 95.04×53.856 mm Active Area


    Up to now, over hundreds of aerospace, power management, network, communications, instrumentation and consumer electronics, etc are benefiting from our service and LCD screen panels.

    We can do for you:

    1. Provide excellent LCD screen replacements with competitive price.
    2. Safe, quick and efficient supply chain.
    3. Plenty of stocks. Branded ones include LCD Screen panels for LG, Samsung, Sharp, BOE, Chimei and so on.
    4. Your problems will be replied within 24 hours.

    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience in industrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.


    TM043NBH01 Information


    Panel Size :4.3 inch
    Dot Resolution :480(RGB)×272 (WQVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :128 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.066×0.198 mm (H×V)
    Pixel Pitch :0.198×0.198 mm (H×V)
    Weight :56g
    Surface :Antiglare
    Active Area :95.04×53.856 mm (H×V)
    Bezel Area :99.2×57.1 mm (H×V)
    Outline Dimension :105.5×67.2 mm (H×V)
    Outline Depth :4.15/5.5 (Typ./Max.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Embeded (4-wire Resistive)
    Display Mode :TN, Normally White, Transmissive
    Brightness :400 cd/m² (Typ.)
    Contrast Ratio :450 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :20 (Typ.)(Tr+Td)
    Viewing Angle :70/70/70/50 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.320; Wy:0.340
    White Variation :1.25 (Typ.)(9 points)
    Sunlight Readable :N

    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM240160XCFWGRATianma2.2"240×160
    TM128128F6CCWGWC1Tianma1.44"128×128
    TM12864G3CCWGWA-1Tianma2.4"128×64
    TM050XYSP02Tianma5.0"540×960
    TM050JYHN11-00Tianma5.0"720×1280
