TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm

    Buy cheap TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm from wholesalers

    Buy cheap TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm from wholesalers
    • Buy cheap TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm from wholesalers

    TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM035WBHG01
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    TM035WBHG01 Tianma LCD Displays 3.5 inch , flat lcd panel 53.28×71.04 mm

    TM035WBHG01 TIANMA 3.5 inch Normally White with 53.28×71.04 mm

    Products Information:
    Panel Size :3.5 inch
    Dot Resolution :480(RGB)×640 (VGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :228 PPI
    Aspect Ratio :3:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.037×0.111 mm (H×V)
    Pixel Pitch :0.111×0.111 mm (H×V)
    Surface :Antiglare
    Active Area :53.28×71.04 mm (H×V)
    Outline Dimension :64×85 mm (H×V)
    Outline Depth :4.33±0.3 mm
    Landscape or Portrait :Portrait type
    Touch Panel :Embeded (4-wire Resistive)


    FAQ
    Q1: What's price?
    A1: We provide reasonable price and recommend suitable batteries to our customers.
    Q2: What's delivery time?
    A2: The delivery time is normally 1-3 working days after payment.
    Q3: What's the payment?
    A3: We accept T/T, Western Union, MoneyGram, Paypal
    Q4: Can we visit your factory?
    A4: Warmly welcome. Once we have your schedule, we will arrange
    professional sales team to follow up your case.

    Display Mode :TN, Normally White, Transmissive
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :60/70/70/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :9 o'clock
    White color Chromaticity :Wx:0.301; Wy:0.321
    White Variation :1.33/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N


    After-sale service:
    1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
    2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
    3.We offered training to our customer who includes operating and maintenance of our products.
    4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
    5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
    6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM240160XCFWGRATianma2.2"240×160
    TM128128F6CCWGWC1Tianma1.44"128×128
    TM12864G3CCWGWA-1Tianma2.4"128×64
    TM050XYSP02Tianma5.0"540×960
    TM050JYHN11-00Tianma5.0"720×1280
    TM055JYSP08Tianma5.5"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

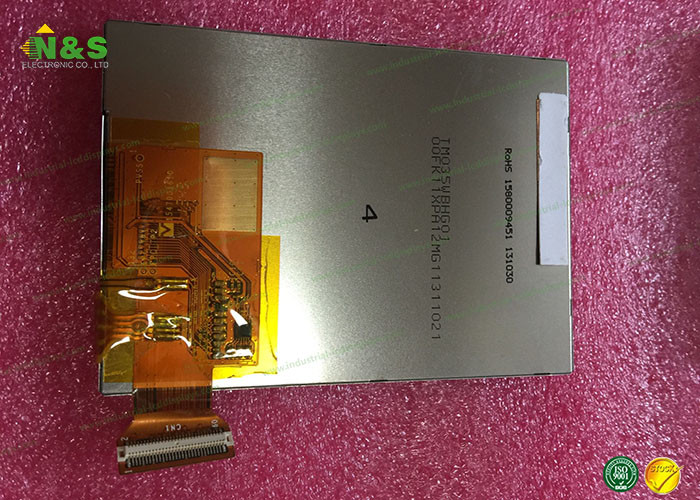

    TM035WBHG01 Picture
