    LS080HT111 Innolux 8.0 inch TFT LCD Module LCM 800×600 250 500:1 262K WLED TTL

    Ask Lasest Price
    Brand Name : JDI
    Model Number : LS080HT111
    Certification : iso9001
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3WORK DAY
    • Product Details
    • Company Profile

    LS080HT111 Innolux 8.0 inch TFT LCD Module LCM 800×600 250 500:1 262K WLED TTL


    LS080HT111 Innolux 8.0 inch TFT LCD Module LCM 800×600 250 500:1 262K WLED TTL


    LS080HT111 Specification

    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :125 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0675×0.2025 mm (H×V)
    Pixel Pitch :0.2025×0.2025 mm (H×V)
    Weight :250g (Typ.)
    Active Area :162×121.5 mm (H×V)
    Bezel Area :163.6×123.1 mm (H×V)
    Outline Dimension :183×141 mm (H×V)
    Outline Depth :5.8 (Typ.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :
    TN, Normally White, Transmissive
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Response Time :15/35 (Typ.)(Tr/Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    Sunlight Readable :N

    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!

    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.
    2. Anti-Shock Bubble Bag Packing
    3. Foam and Hard Carton Packing
    4. Picked up by forward and delivered by express services.

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    LQ079L1SX06SHARP7.9"1536×2048
    LQ079L1SX04SHARP7.9"1536×2048
    LQ133M1JW08SHARP13.3"1920×1080
    LQ156D1JX02SHARP15.6"3840×2160
    LQ156Z1JW01SHARP15.6"3200×1800

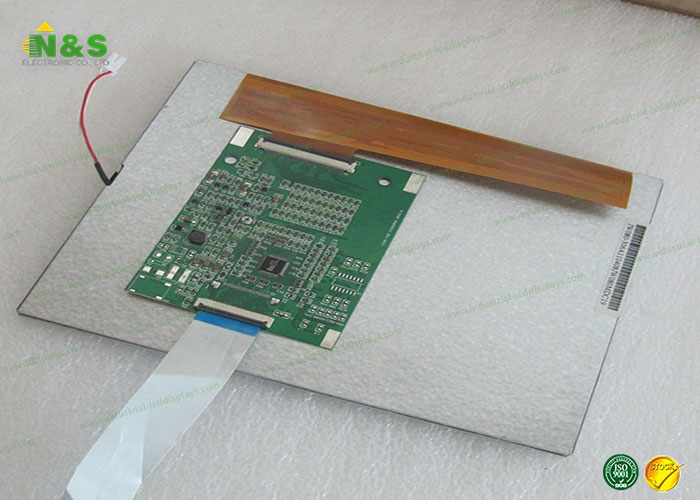

    LS080HT111 Picture
