    19.0 inch CMO M190E5-L0A LCD Panel Normally White with 376.32×301.056 mm Active Area

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : M190E5-L0A
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram
    Delivery Time : 1-3 Working Days
    Supply Ability : 500PCS/DAY
    • Product Details
    • Company Profile

    19.0 inch CMO M190E5-L0A LCD Panel Normally White with 376.32×301.056 mm Active Area

    19.0 inch CMO M190E5-L0A LCD Panel Normally White with 376.32×301.056 mm Active Area


    M190E5-L0A LCD Panel Specification

    Panel Brand :CMO
    Panel Model :M190E5-L0A
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :19.0 inch
    Resolution :1280(RGB)×1024 , SXGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :376.32×301.056 mm
    Outline :396×324×17 mm
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Brightness :300 cd/m² (Typ.)
    Contrast Ratio :700:1 (Typ.)
    Display Colors :16.2M (6-bit + FRC)
    Response Time :2/6 (Typ.)(Tr/Td)
    Viewing Angle :75/75/70/60 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :4 pcs CCFL Without Driver
    Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage :5.0V (Typ.)

    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hour


    Panel Size :19.0 inch
    Dot Resolution :1280(RGB)×1024 (SXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :86 PPI
    Aspect Ratio :5:4 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.098×0.294 mm (H×V)
    Pixel Pitch :0.294×0.294 mm (H×V)
    Weight :2.90Kgs (Max.)
    Surface :Antiglare (Haze 25%), Hard coating (3H)
    Active Area :376.32×301.056 mm (H×V)
    Bezel Area :380.2×305.0 mm (H×V)
    Outline Dimension :396×324 mm (H×V)
    Outline Depth :17.0 (Max.) mm
    Holes & Brackets :Side mounting holes (4-M3) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Packaging & Shipping for Our LCD panel

    1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.

    2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.

    Other shipping terms can also be arranged according to specific requirements.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    ED097OC1E Ink9.7"1200×825
    ED080XC2E Ink8.0"1024×768
    ED080XC1E Ink8.0"1024×768
    ED060SC3E Ink6.0"800×600
    ED050SC1E Ink5.0"800×600
    PD035QX7E Ink3.5"320×240
    PW070DS6E Ink7.0"480×234
    P1924QC1E Ink2.4"240×320
    PM049OX1E Ink4.9"266×600

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

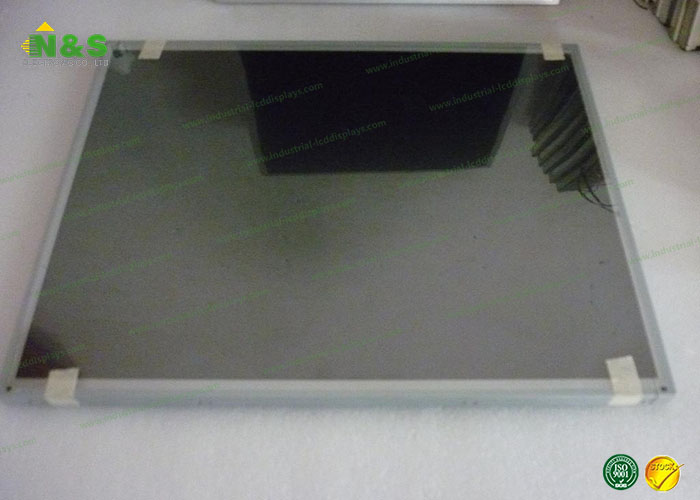

    M190E5-L0A Innolux LCD Panel Picture
