    4.3 inch LR430RC9001 Innolux LCD Panel Innolux with 95.04×53.856 mm Active Area

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : LR430RC9001
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3WORK DAY
    • Product Details
    • Company Profile

    4.3 inch LR430RC9001 Innolux LCD Panel Innolux with 95.04×53.856 mm Active Area

    4.3 inch LR430RC9001 Innolux LCD Panel Innolux with 95.04×53.856 mm Active Area

    LR430RC9001 Specification

    Panel Size :4.3 inch
    Dot Resolution :480(RGB)×272 (WQVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :128 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.066×0.198 mm (H×V)
    Pixel Pitch :0.198×0.198 mm (H×V)
    Weight :45g
    Surface :Antiglare
    Active Area :95.04×53.856 mm (H×V)
    Bezel Area :98.7×57.4 mm (H×V)
    Outline Dimension :105.5×67.2 mm (H×V)
    Outline Depth :2.9±0.2(Typ.) mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :550 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Response Time :15/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/55/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.29; Wy:0.30
    White Variation :1.25 (Typ.)
    Sunlight Readable :N


    Here comes our other LCD panels stock for your easy reference:
    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    V850DK1-QS1 Rev.C2Innolux85"3840×2160
    V650DJ4-QS5 Rev.M1Innolux65"3840×2160
    N080ICP-G01 CELLInnolux8.0"800×1280
    DE080NA-01DInnolux8.0"800×480
    AT080YN01Innolux8.0"1024×600
    PG055IA-03HInnolux5.5"720×1280
    PP057IC-01AInnolux5.7"1080×1920
    PG055IC-07FInnolux5.5"1080×1920
    PB050IC-01DInnolux5.0"1080×1920
    PG050IA-02AInnolux5.0"540×960


    Competitive Advantage:
    1. Rich experience.
    Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

    2. Great quality and high purity
    Good quality is one secret for our success.

    3. Safest and fastest delivery.
    We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
    4. Good after-sales service.
    24/7 is available. Try our best to solve various problems customers encountered!


    Packaging & Shipping for Our LCD panel
    1. We will ship the LCD display panels within 1-3 workdays after receipt of payment.
    2. We can ship to you by UPS/FEDEX/DHL and so some other direct international express line.
    Other shipping terms can also be arranged according to specific requirements.

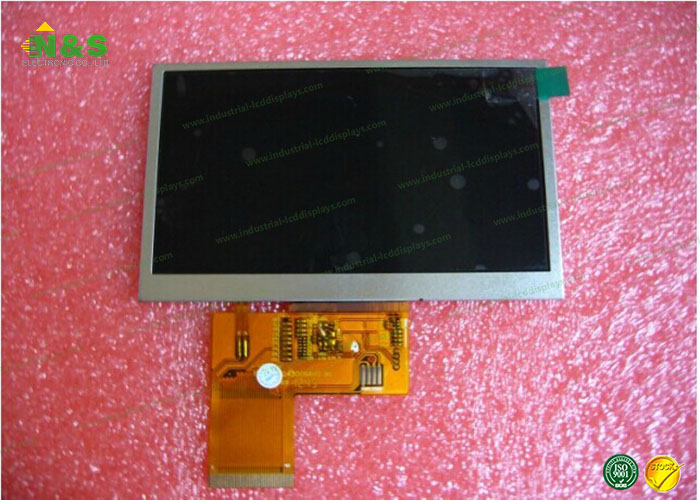

    LR430RC9001 Picture
