HSD080IDW1-C01 HannStar TFT LCD Module , WVGA lcd display panel

    Buy cheap HSD080IDW1-C01 HannStar TFT LCD Module , WVGA lcd display panel from wholesalers

    Buy cheap HSD080IDW1-C01 HannStar TFT LCD Module , WVGA lcd display panel from wholesalers
    • Buy cheap HSD080IDW1-C01 HannStar TFT LCD Module , WVGA lcd display panel from wholesalers

    HSD080IDW1-C01 HannStar TFT LCD Module , WVGA lcd display panel

    Ask Lasest Price
    Brand Name : HannStar
    Model Number : HSD080IDW1-C01
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    HSD080IDW1-C01 HannStar TFT LCD Module , WVGA lcd display panel

    Normally White HSD080IDW1-C01 HannStar LCD Panel with 176.64×99.36 mm


    Our advantages in the LCD Screen market:
    1.Better price
    2.Fast delivery
    3.Top quality
    4.First class after - sales service
    5.No memory effect
    6.Sourcing lines & Distributors for the EOL LCD.

    FAQ:

    1. Q: Are you a manufacturer or trading company?

    A: We are a trading company who has been specializing in marketing LCD display for 6 years.

    2. Q:What’s the quality of your products?

    A: In visual inspection, we will make sure no damage, no scratches ,no dusty ,no flaws. And in function inspection, we make sure all functions are 100% tested ok.

    3. Q: What is your after-sale service?

    A: We offer 100% guarantee on our product. We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

    4. Q: What is your MOQ?

    A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

    5. Q: When will you make the delivery?

    A: We can make the delivery for the LCD panels you want within 1-3 working days after receipt of payment.

    6. Q: what brand of screen could we handle?

    A: We can handle LCD panels for the below brand: Samsung, LG, AUO, Sharp, NEC, Hitachi industrial screen and more.


    HSD080IDW1-C01 Product Information

    Panel Brand :HannStar
    Panel Model :HSD080IDW1-C01
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :8.0 inch
    Resolution :800(RGB)×480 , WVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :176.64×99.36 mm
    Outline :193.1×117.2×6.92 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :450 cd/m² (Typ.)
    Contrast Ratio :500:1 (Min.)
    Display Colors :262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 50%
    Response Time :5/20 (Typ.)(Tr/Td)
    Viewing Angle :75/75/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :3S10P WLED Without Driver
    Signal Interface :TTL (1 ch, 6/8-bit) , 60 pins
    Input Voltage :3.3/9.7/15.0/-9V (VCC/AVDD/VGH/VHL)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    HSD043B8W2-C01HannStar4.3"480×800
    HSD070IDW3-A00-0299HannStar7.0"800×480
    HSD050F9W1-A00HannStar5.0"480×272
    HSD050FDW1-A00HannStar5.0"800×480
    HSD043F9W1-A00HannStar4.3"480×272
    HSD050B8W4-A00HannStar5.0"480×854
    HSD050B8W7-C00HannStar5.0"480×854
    HSD070FHW1-D00HannStar7.0"720×1280
    HSD050B8W2-C00HannStar5.0"480×854
    HSD047BHW1-D00HannStar4.7"720×1280
    HSD047BMW1-C00HannStar4.7"540×960
    HSD045BMW3-D00HannStar4.5"540×960

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :116 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0736×0.2070 mm (H×V)
    Pixel Pitch :0.2208×0.2070 mm (H×V)
    Weight :215g (Typ.)
    Surface :Antiglare, Hard coating (3H)
    Active Area :176.64×99.36 mm (H×V)
    Bezel Area :180.1×103.4 mm (H×V)
    Outline Dimension :193.1×117.2 mm (H×V)
    Outline Depth :6.4/6.92 (Typ./Max.) mm
    Holes & Brackets :Side mounting holes (4-M2) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

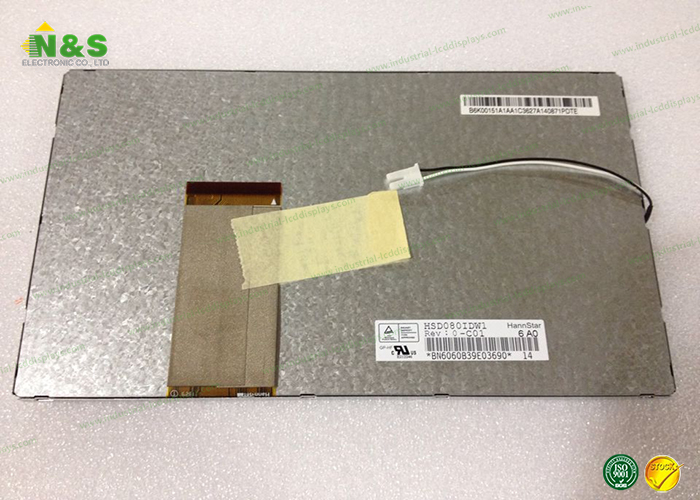

    HSD080IDW1-C01 Picture
