Monochrome 4.7 inch EW32F00BCW EDT TFT LCD Module , replacement lcd display

    Buy cheap Monochrome 4.7 inch EW32F00BCW EDT TFT LCD Module , replacement lcd display from wholesalers

    Buy cheap Monochrome 4.7 inch EW32F00BCW EDT TFT LCD Module , replacement lcd display from wholesalers
    • Buy cheap Monochrome 4.7 inch EW32F00BCW EDT TFT LCD Module , replacement lcd display from wholesalers

    Monochrome 4.7 inch EW32F00BCW EDT TFT LCD Module , replacement lcd display

    Ask Lasest Price
    Brand Name : EDT
    Model Number : EW32F00BCW
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    Monochrome 4.7 inch EW32F00BCW EDT TFT LCD Module , replacement lcd display

    Monochrome 4.7 inch EW32F00BCW EDT LCD Panel with 95.97×71.97 mm


    EW32F00BCW Specification

    Panel Brand :EDT
    Panel Model :EW32F00BCW
    Panel Type :STN-LCD , LCM
    Panel Size :4.7 inch
    Resolution :320×240 , QVGA
    Display Mode :STN, Blue mode, Transmissive
    Active Area :95.97×71.97 mm
    Outline :139×102.5×13.2 mm
    Surface :
    Brightness :120 cd/m² (Typ.)
    Contrast Ratio :20:1 (Typ.)
    Display Colors :Monochrome
    Response Time :228/191 (Typ.)(Tr/Td)
    Viewing Angle :40 (Typ.)(CR≥2, Φ2-Φ1) (L/R/U/D)
    Frequency :75Hz
    Lamp Type :1 pcs CCFL Without Driver
    Signal Interface :Parallel Data (4-bit) , 14 pins
    Input Voltage :5.0V (Typ.)

    Our Advantage

    As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

    1. AUO LCD Screen
    2. Samsung LCD Display
    3. LG LCD Screen replacements
    4. Sharp LCD panels &Chimei LCD Parts.
    5. Innolux LCD Modules & BOE LCD Screen.

    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2.Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.


    Panel Size :4.7 inch
    Dot Resolution :320×240 (QVGA)
    Pixel Configuration :Rectangle
    Pixel Density :84 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.300×0.300 mm (H×V)
    Pixel Pitch :0.300×0.300 mm (H×V)
    Active Area :95.97×71.97 mm (H×V)
    Bezel Area :103.0×79.0 mm (H×V)
    Outline Dimension :139×102.5 mm (H×V)
    Outline Depth :9.4/13.2 (Typ./Max.) mm
    Holes & Brackets :Face mounting holes
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    EW32F50FLYEDT4.7"240×320
    EW32F50GLYEDT4.7"240×320
    EW50961BMWEDT5.7"320×240
    ER057010NM6EDT5.7"320×240

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

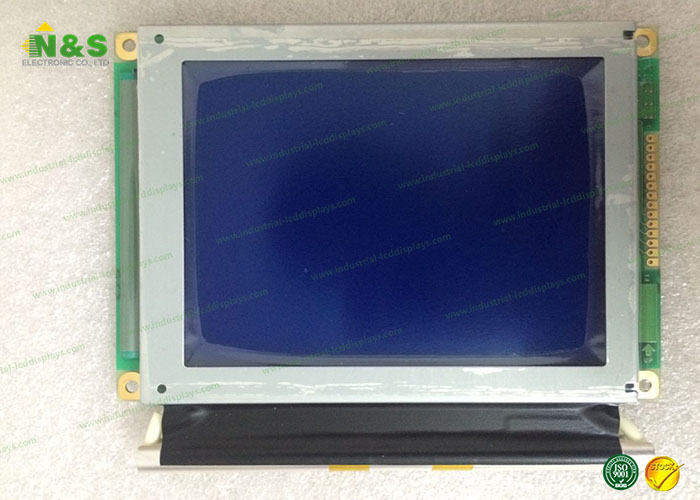

    EW32F00BCW Picture
