    Tianma TM035KDH08 3.5 lcd display tft with 70.08×52.56 mm Active Area

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM035KDH08
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    Tianma TM035KDH08 3.5 lcd display tft with 70.08×52.56 mm Active Area

    Tianma LCD Displays TM035KDH08 3.5 inch with 70.08×52.56 mm Active Area

    What is our advantage?

    Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

    Delivery Quantity: 50-100 cartons shipped by DHL every week

    Supply Ability: 100 pcs Panels per day.

    Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

    Warranty: 12 months.


    Products Information:
    Panel Size :3.5 inch
    Dot Resolution :320(RGB)×240 (QVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :115 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.073×0.219 mm (H×V)
    Pixel Pitch :0.219×0.219 mm (H×V)
    Weight :29.3g (Typ.)
    Surface :Antiglare
    Active Area :70.08×52.56 mm (H×V)
    Bezel Area :72.88×55.36 mm (H×V)
    Outline Dimension :76.9×63.9 mm (H×V)
    Outline Depth :3.15±0.2 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    N&S Delivery Details:
    1) We are shipping this item to worldwide.
    2) Our LCD panel orders processed within 1-3 working days of payment verification.
    3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
    5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

    6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

    7) Feel free to contact to us if there is any problems during the shipment process.


    Display Mode :TN, Normally White, Transmissive
    Brightness :330 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :20 (Typ.)(Tr+Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :12 o'clock
    White color Chromaticity :Wx:0.280; Wy:0.305
    White Variation :1.25/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM128128F6CCWGWC1Tianma1.44"128×128
    TM12864G3CCWGWA-1Tianma2.4"128×64
    TM050XYSP02Tianma5.0"540×960
    TM050JYHN11-00Tianma5.0"720×1280
    TM055JYSP08Tianma5.5"720×1280
    TM040XYHP01Tianma4.0"640×1136
    TM055JYSP03Tianma5.5"720×1280
    TM055JYHP03Tianma5.5"720×1280
    TM055JYHP01Tianma5.5"720×1280
    TM046XYHP01Tianma4.7"540×960
    TL050VGXP01Tianma5.0"1080×1920
    TM060JYSP02Tianma6.0"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

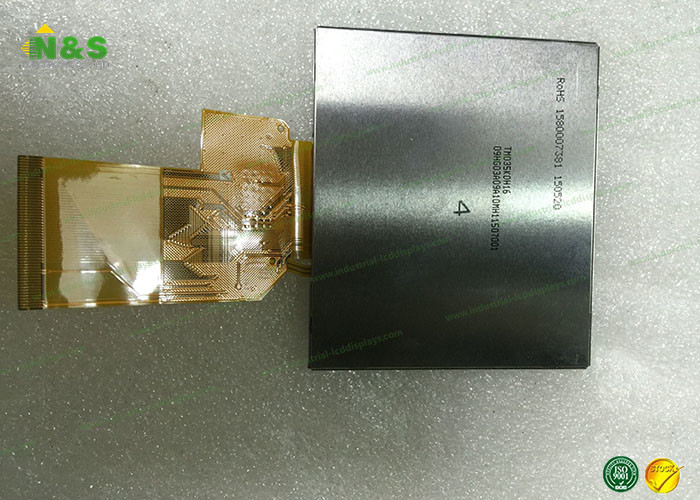

    TM035KDH08 Picture
