    3.5 inch TM035KBZ17 TIANMA Normally White with 70.08×52.56 mm

    Ask Lasest Price
    Brand Name : TIANMA
    Model Number : TM035KBZ17
    Certification : ISO9001
    Payment Terms : T/T, Paypal, Western Union, MoneyGram
    Supply Ability : 100 PCS / DAY
    Delivery Time : 2-3 working days after payment confirmation
    • Product Details
    • Company Profile

    3.5 inch TM035KBZ17 TIANMA Normally White with 70.08×52.56 mm

    3.5 inch TM035KBZ17 TIANMA Normally White with 70.08×52.56 mm

    Products Information:
    Panel Size :3.5 inch
    Dot Resolution :320(RGB)×240 (QVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :115 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.073×0.219 mm (H×V)
    Pixel Pitch :0.219×0.219 mm (H×V)
    Weight :30.15g
    Active Area :70.08×52.56 mm (H×V)
    Bezel Area :72.00×54.56 mm (H×V)
    Outline Dimension :76.9×63.9 mm (H×V)
    Outline Depth :4.0±0.2 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Display Mode :TN, Normally White, Transmissive
    Brightness :300 cd/m² (Typ.)
    Contrast Ratio :400 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :25/25 (Typ.)(Tr/Td)
    Viewing Angle :70/70/56/60 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :12 o'clock
    White Variation :1.25/1.33 (Typ./Max.)(9 points)
    Sunlight Readable :N

    Packaging & Delivery

    Packaging Details:

    Antistatic bag + Bubble bag + Foam box + Carton box

    Delivery Detail:

    1-3 working days after payment confirmed


    What is Our Advantage?

    1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.


    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    TM240160XCFWGRATianma2.2"240×160
    TM128128F6CCWGWC1Tianma1.44"128×128
    TM12864G3CCWGWA-1Tianma2.4"128×64
    TM050XYSP02Tianma5.0"540×960
    TM050JYHN11-00Tianma5.0"720×1280
    TM055JYSP08Tianma5.5"720×1280
    TM040XYHP01Tianma4.0"640×1136
    TM055JYSP03Tianma5.5"720×1280
    TM055JYHP03Tianma5.5"720×1280
    TM055JYHP01Tianma5.5"720×1280
    TM046XYHP01Tianma4.7"540×960
    TL050VGXP01Tianma5.0"1080×1920

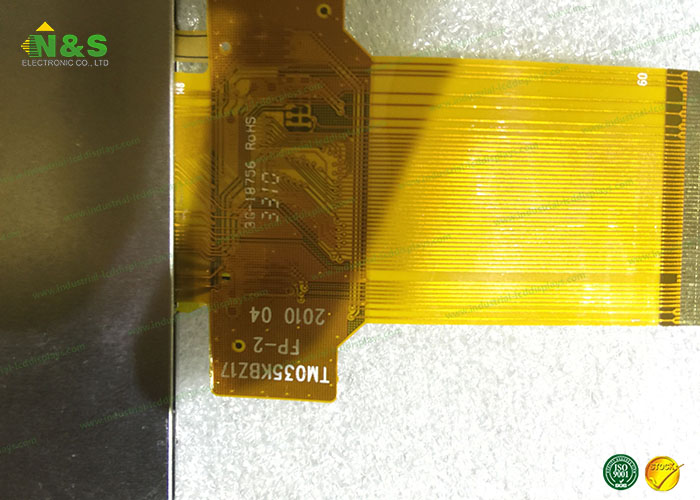

    TM035KBZ17 Picture
