    10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm

    Ask Lasest Price
    Brand Name : HannStar
    Model Number : HSD101PWW1-G10
    Certification : ISO9001
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 2-3 Working Days after order confirmation
    • Product Details
    • Company Profile

    10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm

    10.1 inch HSD101PWW1-G10 HannStar LCD Panel with 216.96×135.6 mm


    Our services
    1.Your inquiry about our products or the price will be replied within 24 hours!
    2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
    3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
    4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.


    HSD101PWW1-G10 Specification

    Panel Brand :HannStar
    Panel Model :HSD101PWW1-G10
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :10.1 inch
    Resolution :1280(RGB)×800 , WXGA
    Display Mode :HS-IPS, Normally Black, Transmissive
    Active Area :216.96×135.6 mm
    Outline :227.42×147.69×4.25 mm
    Surface :Hard coating
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :800:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 45%
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED Embedded (LED Driver)
    Signal Interface :LVDS (1 ch, 6-bit) , 40 pins
    Input Voltage :3.3V (Typ.)

    Packaging & Delivery

    Packaging Details:

    Safey package

    Plastic trays inside

    2 layes of cartons

    Fragile sign on top

    Can be customize 3.5 inch spare parts auo used lcd panel

    Delivery Detail: 1-3 Working Days


    Panel Size :10.1 inch
    Dot Resolution :1280(RGB)×800 (WXGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :149 PPI
    Aspect Ratio :16:10 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0565×0.1695 mm (H×V)
    Pixel Pitch :0.1695×0.1695 mm (H×V)
    Weight :135g (Max.)
    Surface :Hard coating
    Active Area :216.96×135.6 mm (H×V)
    Outline Dimension :227.42×147.69 mm (H×V)
    Outline Depth :2.15/4.25 (Typ./Max.) mm
    Holes & Brackets :Without
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    LK315T3HC1KSHARP31.5"1366×768
    LQ055T3SX04SHARP5.5"1080×1920
    LQ079L1SX06SHARP7.9"1536×2048
    LQ079L1SX04SHARP7.9"1536×2048
    LQ133M1JW08SHARP13.3"1920×1080
    LQ156D1JX02SHARP15.6"3840×2160
    LQ156Z1JW01SHARP15.6"3200×1800

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

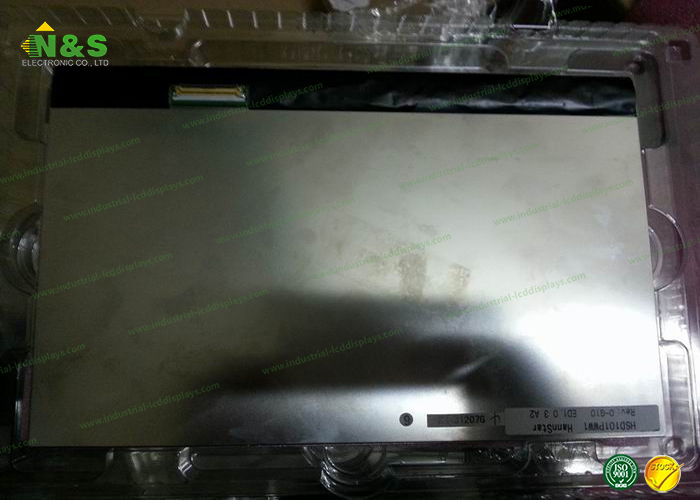

    HSD101PWW1-G10 Picture
