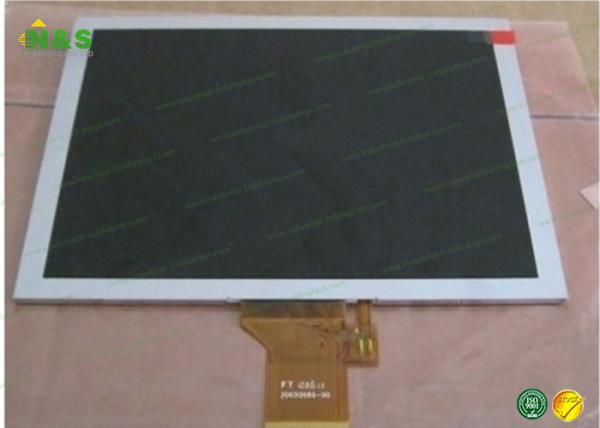

AT080TN52 V.5 8.0 inch Innolux LCD Panel Normally White LCM 800×600 250

    Buy cheap AT080TN52 V.5 8.0 inch Innolux LCD Panel Normally White LCM 800×600 250 from wholesalers

    Buy cheap AT080TN52 V.5 8.0 inch Innolux LCD Panel Normally White LCM 800×600 250 from wholesalers
    • Buy cheap AT080TN52 V.5 8.0 inch Innolux LCD Panel Normally White LCM 800×600 250 from wholesalers

    AT080TN52 V.5 8.0 inch Innolux LCD Panel Normally White LCM 800×600 250

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : AT080TN52 V.5
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    AT080TN52 V.5 8.0 inch Innolux LCD Panel Normally White LCM 800×600 250

    AT080TN52 V.5 Innolux LCD Panel 8.0 inch Normally White LCM 800×600 250


    AT080TN52 V.5 Information


    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×600 (SVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :125 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0675×0.2025 mm (H×V)
    Pixel Pitch :0.2025×0.2025 mm (H×V)
    Weight :TBD
    Active Area :162×121.5 mm (H×V)
    Bezel Area :165.2×124.7 mm (H×V)
    Outline Dimension :183×141 mm (H×V)
    Outline Depth :3.4±0.3 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :190 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.2M (6-bit / 6-bit + Dithering)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N

    Our advantages in the LCD Screen market:
    1.Better price
    2.Fast delivery
    3.Top quality
    4.First class after - sales service
    5.No memory effect
    6.Sourcing lines & Distributors for the EOL LCD.


    FAQ

    Q1: How do we place an order?

    A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

    Q2: How do we make the payment?

    A2: We accept T/T, Western Union, MoneyGram, Paypal.

    Q3: What's the delivery time?

    A3: The delivery time is normally 1-3 working days after payment.

    Q4: How would the goods be shipped?

    A4: We ship via DHL, UPS, TNT and others.


    Here comes our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    M238HCJ-P02Innolux23.8"1920×1080
    ME270NA-01AInnolux27.0"1920×1080
    N156BGE-PB1Innolux15.6"1366×768
    PP050IC-01FInnolux5.0"720×1280
    P060DDZ-ZZ1Innolux6.0"800×1280
    ME236NA-01AInnolux23.6"1920×1080
