    AT080TN03 V.2 Innolux LCD Panel , WVGA Automotive lcd display for car

    Ask Lasest Price
    Brand Name : Innolux
    Model Number : AT080TN03 V.2
    Certification : ISO9001
    Payment Terms : Western Union, T/T, MoneyGram, T/T
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    AT080TN03 V.2 Innolux LCD Panel , WVGA Automotive lcd display for car

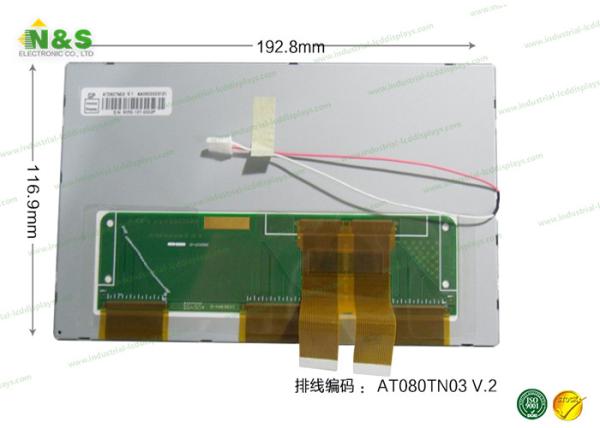

    8.0 inch AT080TN03 V.2 Innolux LCD Panel Normally White for Automotive Display panel


    What is Our Advantage?

    1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

    2. We can provide the one-stop purchase service.

    3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

    4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

    5. Fast delivery.

    6. Reasonable price.


    AT080TN03 V.2 Information


    Panel Size :8.0 inch
    Dot Resolution :800(RGB)×480 (WVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :116 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.0736×0.2070 mm (H×V)
    Pixel Pitch :0.2208×0.2070 mm (H×V)
    Weight :255g (Typ.)
    Surface :Antiglare
    Active Area :176.64×99.36 mm (H×V)
    Bezel Area :180.1×103.4 mm (H×V)
    Outline Dimension :192.8×116.9 mm (H×V)
    Outline Depth :6.4±0.3 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Without
    Display Mode :TN, Normally White, Transmissive
    Brightness :500 cd/m² (Typ.)
    Contrast Ratio :300 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Response Time :15/20 (Typ.)(Tr/Td)
    Viewing Angle :65/65/45/65 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)
    Sunlight Readable :N

    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problem for your after sale. Please contact to us.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    V650DJ4-QS5 Rev.M1Innolux65"3840×2160
    N080ICP-G01 CELLInnolux8.0"800×1280
    DE080NA-01DInnolux8.0"800×480
    AT080YN01Innolux8.0"1024×600
    PG055IA-03HInnolux5.5"720×1280
    PP057IC-01AInnolux5.7"1080×1920
    PG055IC-07FInnolux5.5"1080×1920
