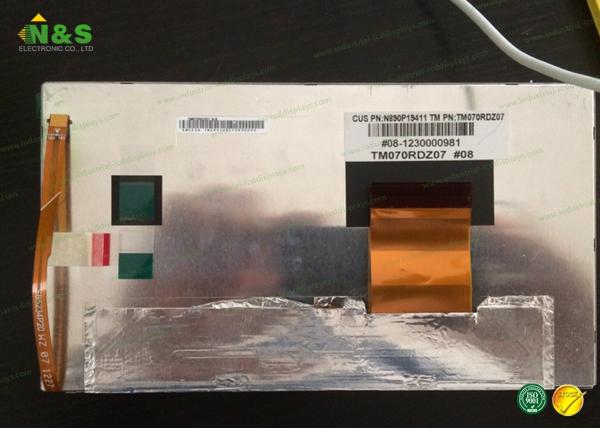

Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline from wholesalers

    Buy cheap Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline from wholesalers
    • Buy cheap Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline from wholesalers

    Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline

    Ask Lasest Price
    Brand Name : Tianma LCD Displays
    Model Number : TM070RDZ07
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline

    Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline


    TIANMA TM070RDZ07 General Features

    Panel Brand :TIANMA
    Panel Model :TM070RDZ07
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :7.0 inch
    Resolution :800(RGB)×480 , WVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :157.2×82.32 mm
    Outline :167×93×6 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :650 cd/m² (Typ.)
    Contrast Ratio :400:1 (Typ.)
    Display Colors :262K (6-bit) , CIE1931 70%
    Response Time :20 (Typ.)(Tr+Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :5S3P WLED
    Signal Interface :Parallel RGB (1 ch, 6-bit) , 60 pins
    Input Voltage :3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)

    Excellent service on before-sale, on-sale and after-sale

    1. We provide one year warranty, will provide the after-sale service for you if any quality problems.

    2. Your inquiry related to our products or prices will be replied in 24 hours.

    3. We will track the shipping status time by time so that buyer can receive our goods in time and safely.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM240160XCFWGRATianma2.2"240×160
    TM128128F6CCWGWC1Tianma1.44"128×128
    TM12864G3CCWGWA-1Tianma2.4"128×64
    TM050XYSP02Tianma5.0"540×960
    TM050JYHN11-00Tianma5.0"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


    TIANMA TM070RDZ07 Optical Features

    Display Mode :TN, Normally White, Transmissive
    Brightness :650 cd/m² (Typ.)
    Contrast Ratio :400 : 1 (Typ.) (Transmissive)
    Display Color :262K (6-bit)
    Color Gamut :70% NTSC (CIE1931)
    Response Time :20 (Typ.)(Tr+Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :12 o'clock
    White Variation :1.25/1.33 (Typ./Max.)(9 points)

    Packing & Delivery for our LCD Screen Panel Replacements:

    1. Anti-static Bag Packing.

    2. Anti-Shock Bubble Bag Packing

    3 .Foam and Hard Carton Packing

    4. Picked up by forward and delivered by express services.

    Quality Tianma LCD Displays TM070RDZ07 7.0 inch 157.2×82.32 mm Active Area 167×93×6 mm Outline for sale
