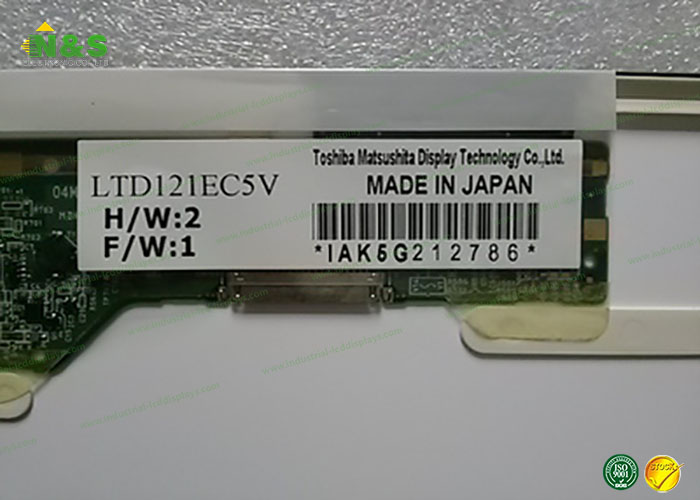

800*600 Industrial LCD Displays , LTD121EC5V 12.1 inch lcd display screen

TFT LCD Module series:

1. Our standard TFT LCD module size:

1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc.

2. Our TFT LCD module brands:

NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

3. Transflective / sun readable TFT LCD.

4. We are pretty specialize in the EOL & Hard-to-find LCD screen panel.

General Features

Panel Brand : Toshiba Matsushita
Panel Model : LTD121C30S
Panel Type : a-Si TFT-LCD , Panel
Panel Size : 12.1 inch
Resolution : 800(RGB)×600 , SVGA
Display Mode : TN, Normally White, Transmissive
Active Area : 246×184.5 mm
Outline : 278.3×209×11 mm
Brightness : 350 cd/m² (Typ.)
Contrast Ratio : 500:1 (Typ.)
Display Colors : 262K (6-bit)
Response Time : 10/25 (Typ.)(Tr/Td)
Viewing Angle : 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type : 2 pcs CCFL Without Driver
Signal Interface : CMOS (1 ch, 6-bit) , 32 pins
Input Voltage : 3.3V (Typ.)(VDD)

Mechanical Features

Panel Size : 12.1 inch
Dot Resolution : 800(RGB)×600 (SVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 82 PPI
Aspect Ratio : 4:3 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.1025×0.3075 mm (H×V)
Pixel Pitch : 0.3075×0.3075 mm (H×V)
Weight : 680g (Typ.)
Active Area : 246×184.5 mm (H×V)
Bezel Area : 249.0×187.5 mm (H×V)
Outline Dimension : 278.3×209 mm (H×V)
Outline Depth : 11.0 (Max.) mm
Holes & Brackets : Face mounting holes (4-Φ3.4) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

Toshiba Matsushita LTD121C30S Optical Features

Toshiba Matsushita LTD121C30S Backlight System

Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

After-sale service:

1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare

[Delivery Time]

The LCD Screen Replacements In stock, ship within 1-3 days.

[Quality Guarantee]

100% New and Original
180-365 Days quality warranty

[Payment Opinions]

1. T/T (Wire Transfer)

2. Western Union

3. Moneygram

4. Paypal

Who we are:

      N&S ELECTRONIC CO., LTD established in year 2010. Our headquarters located in Hong Kong and branch office in Shenzhen, Singapore, Malaysia and Canada. We are professional distributor on LCD panels with our own warehouse and stock. Our goal is to provide worldwide supply chain solution based on integrity.

What we do:

      As the leading LCD distributor in China, we are strong at EOL panels and hard to find panels of famous brands such as NEC, SHARP, AUO, SAMSUNG, LG, TIANMA, HITACHI, KOE etc.

     Our products lines are widely used on medical apparatus, industrial control facilities, portable electrical impedance measurement apparatus, digital video camera display, vehicle equipment, aerospace equipment.

     Our products mostly cover small sizes, like 1.5", 2.0", 2.2", 2.5", 3.0", 3.5", 4.0", 4.2", 4.3", 4.7", 5.0", 5.5", 5.7", 6.0", 6.4", 7.0", 8.0", 10.1", 10.4", 12.1", etc. Most of them are original factory sealed carton packing. Moreover, we will do the brightness inspection of them by testing board.

Our Advantages:

       LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 COUNTRIES or AREAS, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

     N&S will be your powerful partner on LCDs in China. Here we are to quote your need.
