    Lamp Type with WLED TM104SDHG04 10.4 inch Tianma LCD Displays 211.2×158.4 mm Active Area

    Ask Lasest Price
    Brand Name : Tianma LCD Displays
    Model Number : TM104SDHG04
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Lamp Type with WLED TM104SDHG04 10.4 inch Tianma LCD Displays 211.2×158.4 mm Active Area


    Lamp Type with WLED TM104SDHG04 10.4 inch Tianma LCD Displays 211.2×158.4 mm Active Area


    TIANMA TM104SDHG04 General Features

    Panel Brand :TIANMA
    Panel Model :TM104SDHG04
    Panel Type :a-Si TFT-LCD , Panel
    Panel Size :10.4 inch
    Resolution :800(RGB)×600 , SVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :211.2×158.4 mm
    Outline :243×179.4×8.5 mm
    Surface :Antiglare, Hard coating (3H)
    Brightness :500 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :262K/16.7M (6-bit / 6-bit + Hi-FRC) , CIE1931 50%
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :WLED
    Signal Interface :LVDS (1 ch, 6/8-bit) , 20 pins
    Input Voltage :3.3V (Typ.)

    TIANMA TM104SDHG04 Optical Features

    Display Mode :TN, Normally White, Transmissive
    Brightness :500 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :262K/16.7M (6-bit / 6-bit + Hi-FRC)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/60/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :12 o'clock
    White color Chromaticity :Wx:0.305; Wy:0.345
    White Variation :1.33/1.43 (Typ./Max.)(9 points)

    We Can Do for You:

    1) One-to-one service with efficient& professional support;

    2) Protection of your design and all your private information;

    3) We could supply hard-to-findLCD screen replacements;

    4) Quality stability, can to provide certification of products;

    5) Convenient payment methods: PayPal, T/T and Western Union;

    6) Speedy shipment: we could arrange the shipment within 1-3 business days.

    7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

    8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.


    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 6-year experience inindustrial LCD Screen replacements.

    6. Distributor of famous brands Panel: Samsung, LG, Sharp, AUO, TPO, Tianma, Mitsubishi and more.

    7. Fabulous after-sale service.


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    TM240160XCFWGRATianma2.2"240×160
    TM128128F6CCWGWC1Tianma1.44"128×128
    TM12864G3CCWGWA-1Tianma2.4"128×64
    TM050XYSP02Tianma5.0"540×960
    TM050JYHN11-00Tianma5.0"720×1280

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

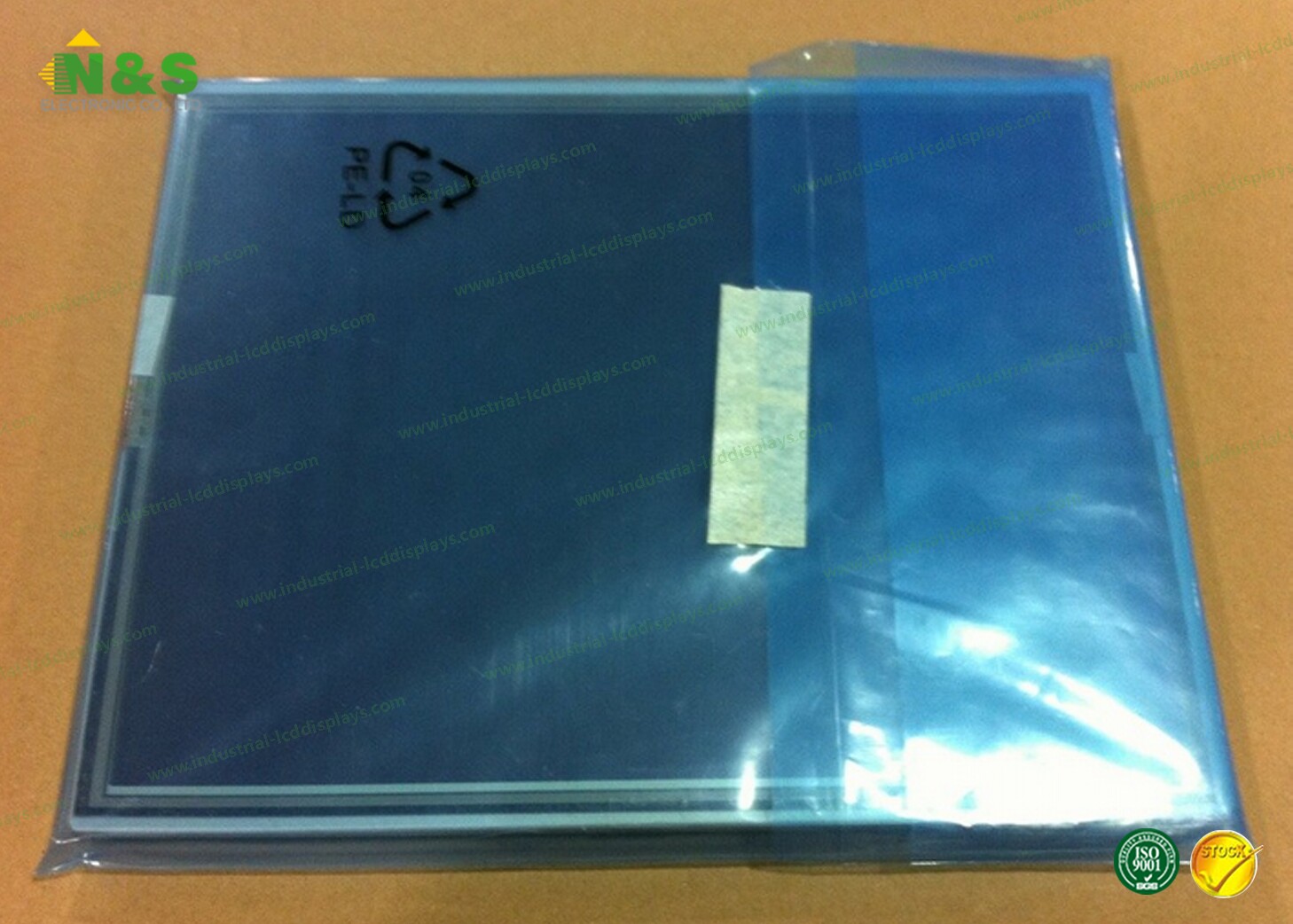

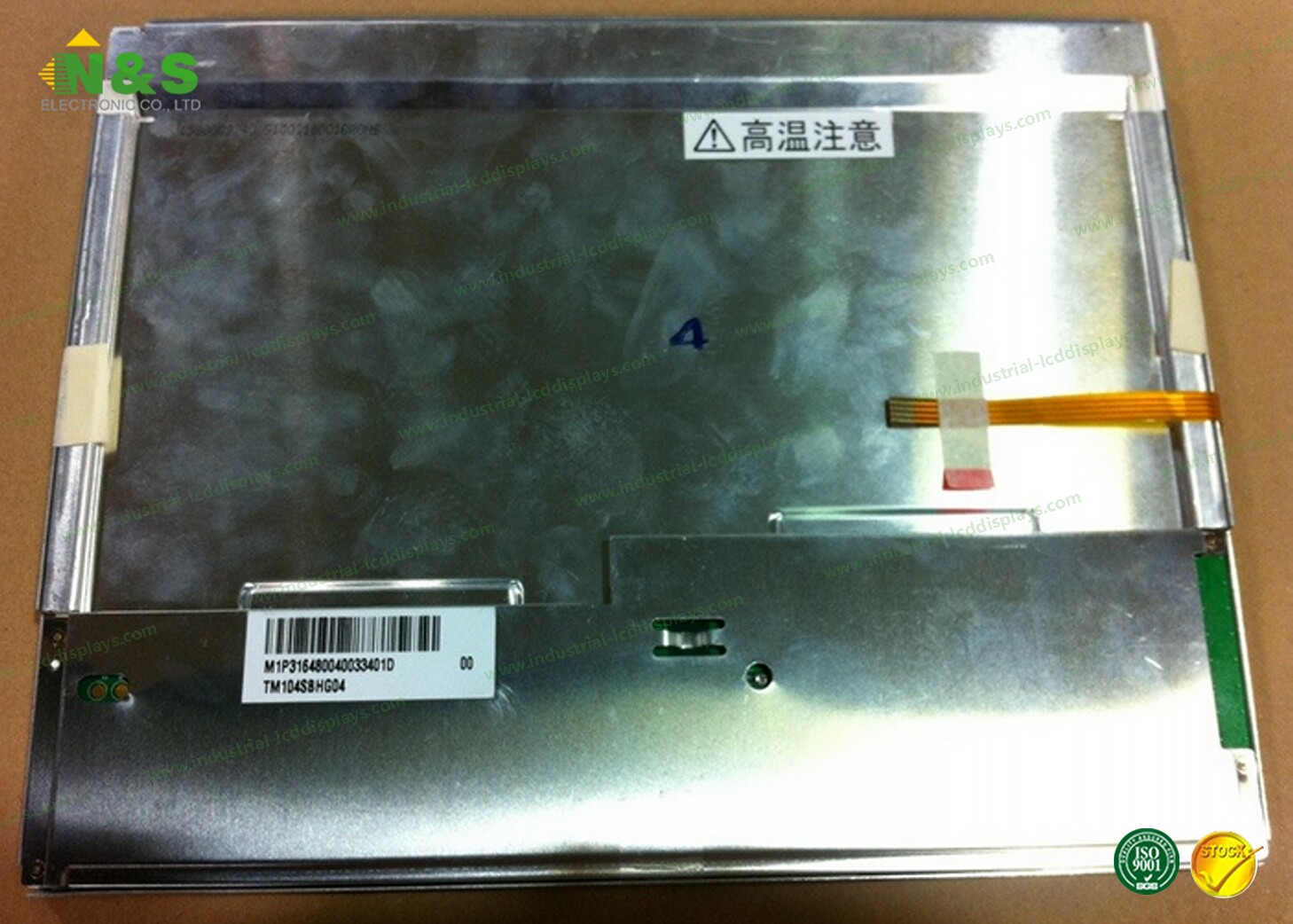

    Details Pictures for Tianma LCD Displays TM104SDHG04
