    5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application

    Ask Lasest Price
    Brand Name : Kyocera
    Model Number : KCS057QV1AA-G03
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application


    5.7 inch KCS057QV1AA - G03 small lcd display for Industrial Application


    Company Strength:


    1. ISO9001 certificated, Factory Direct Supplied

    2. RoHS Compliant, Lead Free, Reach Compliant

    3. Competitive Price and Short Lead-time

    4. Professional Team with Rich Experiences in Design/Mfg/Quality Control

    5. Small MOQ Support & Fast Response to Customers

    6. Long Product Life Time


    Kyocera KCS057QV1AA-G03 General Features

    Panel Brand :Kyocera
    Panel Model :KCS057QV1AA-G03
    Panel Type :CSTN-LCD , Panel
    Panel Size :5.7 inch
    Resolution :320(RGB)×240 , QVGA
    Display Mode :STN, Normally Black, Transmissive
    Active Area :115.18×86.38 mm
    Outline :154.6×114.8×9 mm
    Surface :Glare (Haze 0%)
    Brightness :110 cd/m² (Typ.)
    Contrast Ratio :25:1 (Typ.)
    Display Colors :Color
    Response Time :220/110 (Typ.)(Tr/Td)
    Viewing Angle :50/50/30/30 (Typ.)(CR≥2) (L/R/U/D)
    Frequency :75Hz
    Lamp Type :1 pcs CCFL
    Signal Interface :Parallel Data (8-bit) , 15 pins
    Input Voltage :5.0V (Typ.)

    Packaging & Delivery

    Packaging: Safety Package For all of our LCD Screen Panel Replacements.

    Details: 1. Plastic Trays Inside

    2. Layers of cartons

    3. Fragile Sign on top.

    4. Can be customized.


    Kyocera KCS057QV1AA-G03 Mechanical Features

    Panel Size :5.7 inch
    Dot Resolution :320(RGB)×240 (QVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :70 PPI
    Aspect Ratio :4:3 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.120×0.360 mm (H×V)
    Pixel Pitch :0.360×0.360 mm (H×V)
    Weight :200g (Typ.)
    Surface :Glare (Haze 0%)
    Active Area :115.18×86.38 mm (H×V)
    Bezel Area :120.2×91.4 mm (H×V)
    Outline Dimension :154.6×114.8 mm (H×V)
    Outline Depth :8.5±0.5 mm
    Holes & Brackets :Face mounting holes (2-Φ3.2, 2-R1.6) on left, right bezel
    Landscape or Portrait :Landscape type
    Touch Panel :Without

    Here comes our other LCD panels stock for your easy reference:

    Pls contact to us for more stock information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    KCS072VG1MJ-G40Kyocera7.2"640×480
    KCS6448MSTT-X1Kyocera7.2"640×480
    F-51430NFU-FW-AENKyocera9.4"640×480
    F-51430NFU-FW-AAKyocera9.4"640×480
    KCL6448HSTT-X14Kyocera9.4"640×480
    KCL6448HSTT-X12Kyocera9.4"640×480
    KCS057QV1BM-G20Kyocera5.7"320×240
    KCG047QV1AA-G02Kyocera4.7"320×240
    KCG057QV1DB-G56Kyocera5.7"320×240
    KCB104VG2CG-G20Kyocera10.4"640×480
    KS3224ASTT-FW-X13Kyocera5.7"320×240
    KG057QV1DB-G00Kyocera5.7"320×240
    KCS6448BSTT-X1Kyocera10.4"640×480
    KCS6448BSTT-X4Kyocera10.4"640×480
    KCS6448BSTT-X12Kyocera10.4"640×480

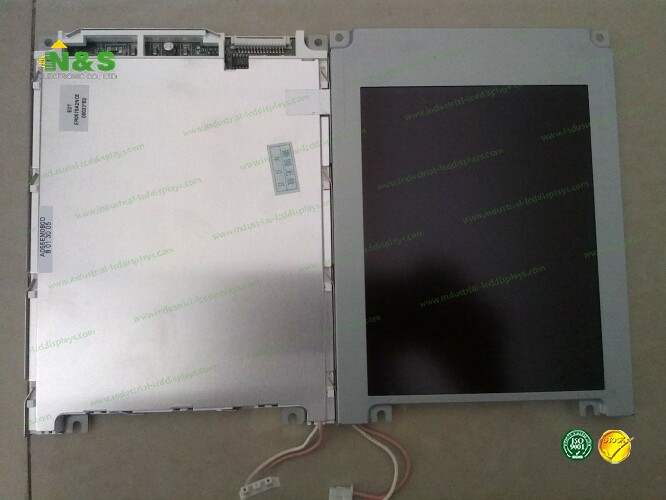

    Details Pictures for KCS057QV1AA-G03 Industrial LCD
