Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers

    Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers
    • Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers
    • Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers
    • Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers
    • Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers
    • Buy cheap Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01 from wholesalers

    Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01

    Ask Lasest Price
    Brand Name : CMO
    Model Number : G150X1-L01
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Antiglare 15'' Twin Light Lamp industrial lcd panel High Brightness G150X1-L01

    15'' Twin Light Lamp Industrial LCD Displays , High Brightness LCD Panel G150X1-L01


    Our Advantage:


    >>Quality Guarantee:

    Our LCD Panels are 100% original and brand new!

    Warranty : 12 months

    You can enjoy the real panels directly from the LCD panel brand distributor.


    >>Packing Guarantee:

    All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!


    >>Delivery Guarantee:

    We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!


    >>After-Sale service:

    We have many years good experience on display solution.

    Any question, we will reply you within 12 hours.


    Technical Specifications


    Operating Temperature :

    -30 ~ 70 °C

    Storage Temperature :

    -40 ~ 80 °C

    Dot Resolution :

    1024(RGB)×768 (XGA)

    Pixel Density :

    85 PPI

    Aspect Ratio :

    4:3 (H:V)

    Dot Pitch :

    0.099×0.297 mm (H×V)

    Pixel Pitch :

    0.297×0.297 mm (H×V)

    Weight :

    1.10Kgs (Max.)

    Active Area :

    304.128×228.096 mm (H×V)

    Bezel Area :

    307.4×231.3 mm (H×V)

    Outline Dimension :

    326.5×253.5 mm (H×V)

    Outline Depth :

    13.85±0.5 mm

    Brightness :

    450 cd/m² (Typ.)

    Contrast Ratio :

    700 : 1 (Typ.) (Transmissive)

    Display Color :

    16.2M (6-bit + FRC)

    Response Time :

    8/17 (Typ.)(Tr/Td)

    Viewing Angle :

    80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)

    White Variation :

    1.25/1.40 (Typ./Max.)(9 points)

    Vertical Frequency :

    60Hz


    CMO G150X1-L01 Backlight System


    Lamp Position

    Edge light type (Top and Bottom)

    Lamp Type

    CCFL

    Lamp Amount

    2 pcs

    Lamp Shape

    Straight

    Lamp Life Time

    50K(Min.) (Hours)

    Lamp Voltage

    520/580/638V (Min./Typ./Max.)

    Lamp Current

    2.0/8.0/8.5mA (Min./Typ./Max.)

    Lamp Operating Frequency

    40/80KHz (Min./Max.)

    Lamps Power Consumption

    9.28W (Typ.)

    Interface Type

    Connector

    Backlight Interface

    Brand

    ModelPin PitchPinsAmountConfiguration

    JST

    BHR-03VS-14.0 mm3 pins2 pcsBLL-3PINS-HNL

    Lamp Driver Board

    No


    Primary Competitive Advantages:


    • Price
    • Product Features
    • Product Performance
    • Prompt Delivery
    • Quality Approvals
    • Reputation
    • Service
    • Small Orders Accepted
    • Brand-name Parts
    • Country of Origin
    • Distributorships Offered
    • Electronic Link
    • Experienced Staff
    • Form A
    • Green Product
    • Guarantee/Warranty
    • International Approvals
    • Military Specifications
    • Packaging

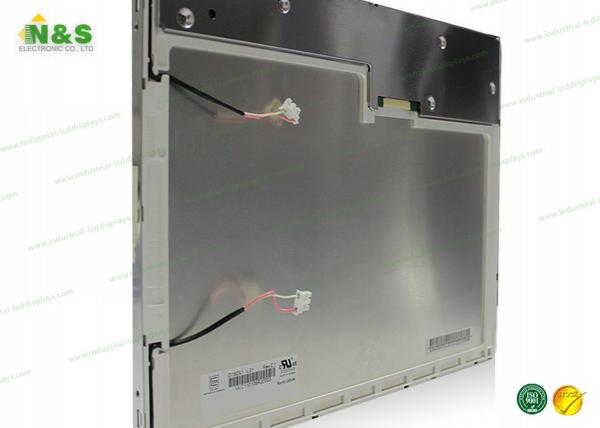

    Product Show for CMO G150X1-L01
