15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays

N&S ELECTRONIC CO., LIMITED
Contact Now
    Buy cheap 15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays from wholesalers

    Buy cheap 15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays from wholesalers
    • Buy cheap 15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays from wholesalers
    • Buy cheap 15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays from wholesalers
    • Buy cheap 15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays from wholesalers
    • Buy cheap 15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays from wholesalers

    15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays

    Ask Lasest Price
    Brand Name : CMO
    Model Number : G150X1-L02
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays

    15 inch TFT LCD G150X1-L02 CMO for 450 cd/m² Brightness Industrial LCD Displays


    CMO G150X1-L02 Optical Features


    Display Mode : TN, Normally White, Transmissive
    Brightness : 450 cd/m² (Typ.)
    Contrast Ratio : 700 : 1 (Typ.) (Transmissive)
    Display Color : 16.2M (6-bit + FRC)
    Response Time : 8/17 (Typ.)(Tr/Td)
    Viewing Angle : 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
    White Variation : 1.25/1.40 (Typ./Max.)(9 points)


    Our Service


    1. Agent Brand:

    * AUO/CPT/CMO/ /Innolux/ TianMa five brands tft lcd moulds, you can get the most competitive price for real products.


    2. Application of our lcd panles:

    *Our LCD displays are widely used for banking machines, communication tools, household appliances, automobile instruments, mobile phone, video door phone, E-book, stock mobile, MP5, tablet PC, GPS navigator and so on.


    3. Quality to be guaranteed:

    * All the panels are 100% original and brand new. Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number.


    4. Quickly delivery:

    *We also have international logistic center in Hongkong to support your batch orders to be delivered from HongKong directly. And we own various long-term cooperated express lines for much better service for our clients.


    5.long-term partner:

    * Products are sold to more than 150 countries. And big quantity for the long-term partners.


    6. Super After-Sale service:

    *One year warranty. Feel free to contact to us if there is any problems.


    Packaging & Delivery


    Packaging Details:

    • Safey package
    • Plastic trays inside
    • 2 layes of cartons
    • Fragile sign on top
    • Can be customize 3.5 inch spare parts auo used lcd panel

    Delivery Detail: 1-3 Working Days


    Backlight System


    Lamp PositionEdge light type (Top and Bottom)
    Lamp TypeCCFL
    Lamp Amount2 pcs
    Lamp ShapeStraight
    Lamp Life Time50K(Min.) (Hours)
    Lamp Voltage580±58
    Lamp Current2.0/8.0/8.5mA (Min./Typ./Max.)
    Lamp Operating Frequency40/80KHz (Min./Max.)
    Lamps Power Consumption9.28W (Typ.)
    Interface TypeConnector
    Backlight InterfaceBrandModelPin PitchPinsAmountConfiguration
    JSTBHR-03VS-14.0 mm3 pins2 pcsBLL-3PINS-HNL
    Lamp Driver BoardNo

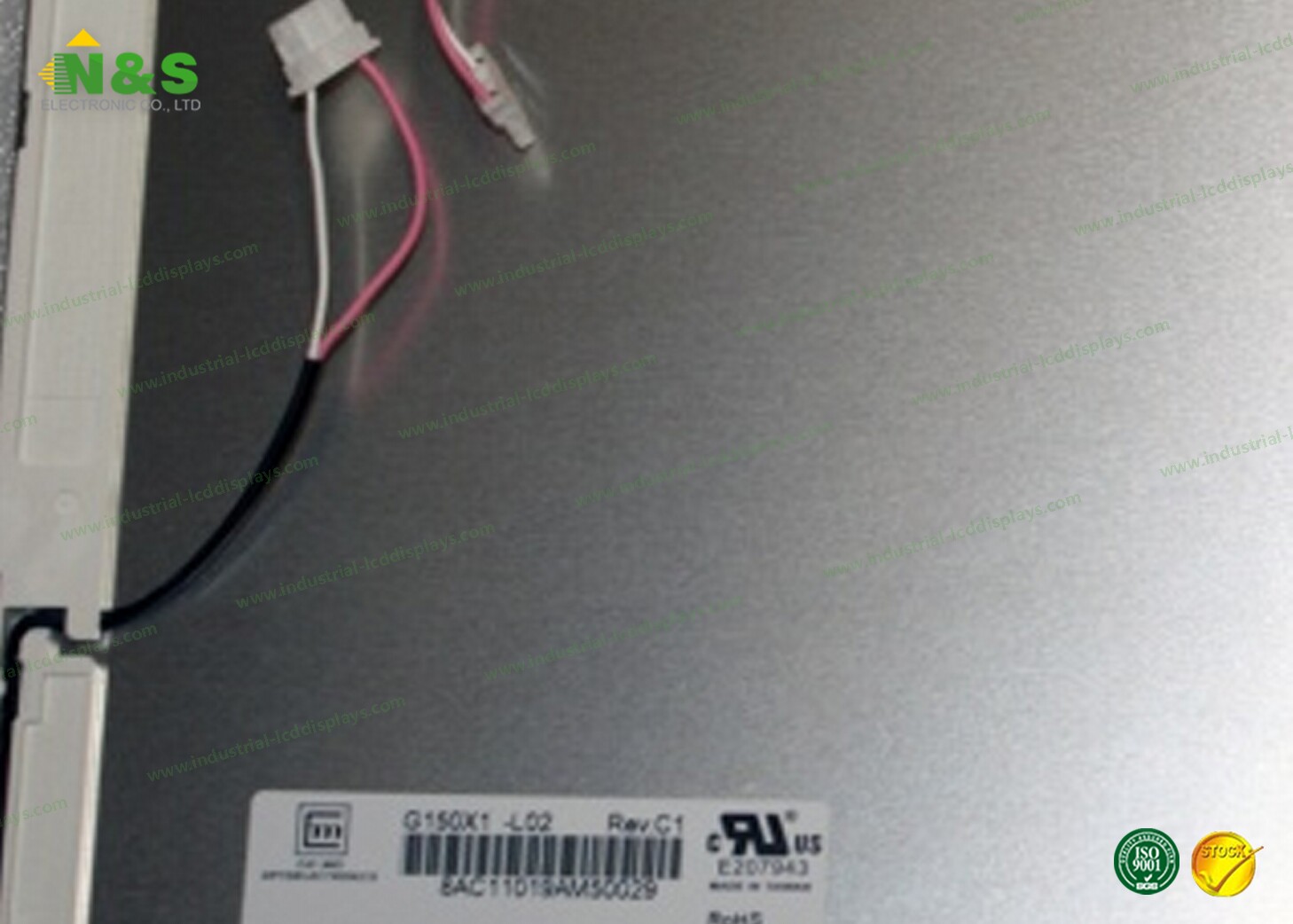

    Product CMO G150X1-L02 Image
