    Normally White AT050TN33 LCD Display with 480*272 for MP4 PMP panel

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : AT050TN33
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    Normally White AT050TN33 LCD Display with 480*272 for MP4 PMP panel

    Normally White AT050TN33 LCD Display with 480*272 for MP4 PMP panel


    INNOLUX AT050TN33 General Features

    Panel Brand :INNOLUX
    Panel Model :AT050TN33
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :5.0 inch
    Resolution :480(RGB)×272 , WQVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :110.88×62.832 mm
    Outline :120.7×75.8×4.45 mm
    Surface :Antiglare
    Brightness :300 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 50%
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Frequency :60Hz
    Lamp Type :6S2P WLED
    Signal Interface :Parallel RGB (1 ch, 8-bit) , 40 pins
    Input Voltage :3.3V (Typ.)(VCC)

    INNOLUX AT050TN33 Mechanical Features

    Panel Size :5.0 inch
    Dot Resolution :480(RGB)×272 (WQVGA)
    Pixel Configuration :RGB Vertical Stripe
    Pixel Density :109 PPI
    Aspect Ratio :16:9 (H:V)
    Form Factor :Flat Rectangle Display
    Dot Pitch :0.077×0.231 mm (H×V)
    Pixel Pitch :0.231×0.231 mm (H×V)
    Weight :83g (Typ.)
    Surface :Antiglare
    Active Area :110.88×62.832 mm (H×V)
    Bezel Area :113.90×65.85 mm (H×V)
    Outline Dimension :120.7×75.8 mm (H×V)
    Outline Depth :4.25±0.2 mm
    Landscape or Portrait :Landscape type
    Touch Panel :Embeded (4-wire Resistive, Film / Glass)

    FAQ

    Q1: What's price?

    A1: We provide reasonable price and recommend suitable batteries to our customers.

    Q2: What's delivery time?

    A2: The delivery time is normally 1-3 working days after payment.

    Q3: What's the payment?

    A3: We accept T/T, Western Union, MoneyGram, Paypal

    Q4: Can we visit your factory?

    A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.


    Why Choose US:

    1. Prompt reply within 12 hours.

    2. Understand inquiry in any language.

    3. Products with top quality.

    4. Very competitive prices.

    5. 13 years experience in intelligent controller R&D and manufacturing.

    6. Strong R&D term supports perfect customized projects.

    7. Supplier of famous brands: Sun Rain, Phnix, Chigo, Rechi, Microwell SRO etc.

    8. Fabulous after-sale service.


    Below are our other LCD panels stock for your easy reference:


    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

    Panel ModelBrandSizeResolution
    P079ZCZ-3Z2Innolux7.9"768×1024
    M315DJJ-Q01Innolux31.5"3840×2160
    V320BJ6-Q01Innolux31.5"1366×768
    V650DK2-QS2Innolux65"3840×2160
    F055A15-6T1Innolux5.5"720×1280
    F050A19-601Innolux5.5"720×1280
    HE101IA-01RInnolux10.1"1280×800

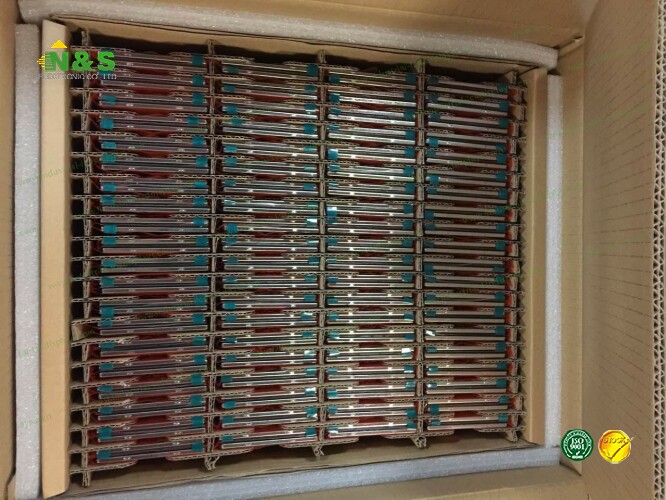

    Details Pictures for AT050TN33
