    12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel

    Ask Lasest Price
    Brand Name : CMO
    Model Number : G121X1-L04
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 100 PCS PER DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel

    12.1 inch G121X1-L04 Innolux LCD screen , new original TFT LCD Panel


    Our Companys Main Products:


    1. AUO LCD Panel

    2. Innolux LCD Panel

    3. Tianma LCD Displays

    4. Samsung LCD Panel

    5. Chimei LCD Screen

    6. Innolux LCD Display

    7. Hitachi LCD Panel

    8. NEC LCD Screen Replacement

    9. Sharp LCD Screen

    10. TFT LCD Module

    11. Industrial LCD Displays


    CMO G121X1-L04 Optical Features


    Display Mode :

    TN, Normally White, Transmissive

    Brightness :

    500 cd/m² (Typ.)

    Contrast Ratio :

    700 : 1 (Typ.) (Transmissive)

    Display Color :

    262K/16.2M (6-bit / 6-bit + FRC)

    Color Gamut :

    63% NTSC (CIE1931)

    Response Time :

    5/11 (Typ.)(Tr/Td)

    Viewing Angle :

    80/80/70/70 (Typ.)(CR≥10) (L/R/U/D)

    White color Chromaticity :

    Wx:0.313; Wy:0.329

    White Variation :

    1.25/1.40 (Typ./Max.)(5 points)


    Backlight System


    Lamp Position

    Edge light type

    Lamp Type

    WLED

    Lamp Life Time

    30K(Min.) (Hours)

    Interface Type

    Connector

    Backlight Interface

    Brand:

    Model:

    Pin Pitch:

    Pins:

    Amount:

    ACES

    91208-01001

    1.0 mm

    10 pins

    1 pcs

    Lamp Driver Board

    Embedded (LED Driver)

    Lamp Driver Board

    12.0±5.0V

    Lamp Driver Board

    0.4/0.5A (Typ./Max.)

    Lamp Driver Board

    4.8/6W (Typ./Max.)


    1. Samples charge: According to the model. Pls contact us to get details.


    2. Samples time: 1 day forstock models


    Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.


    Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.


    Guarantee:

    (1) All items will be strictly tested and shipped with safe & professional package.

    (2) We have 12 months warranty for each LCD screen panel, depend on the different LCD panel models.

    (3) We will do our best to solve any possible problems for your after sale sevice. Please contact with us if any problems.

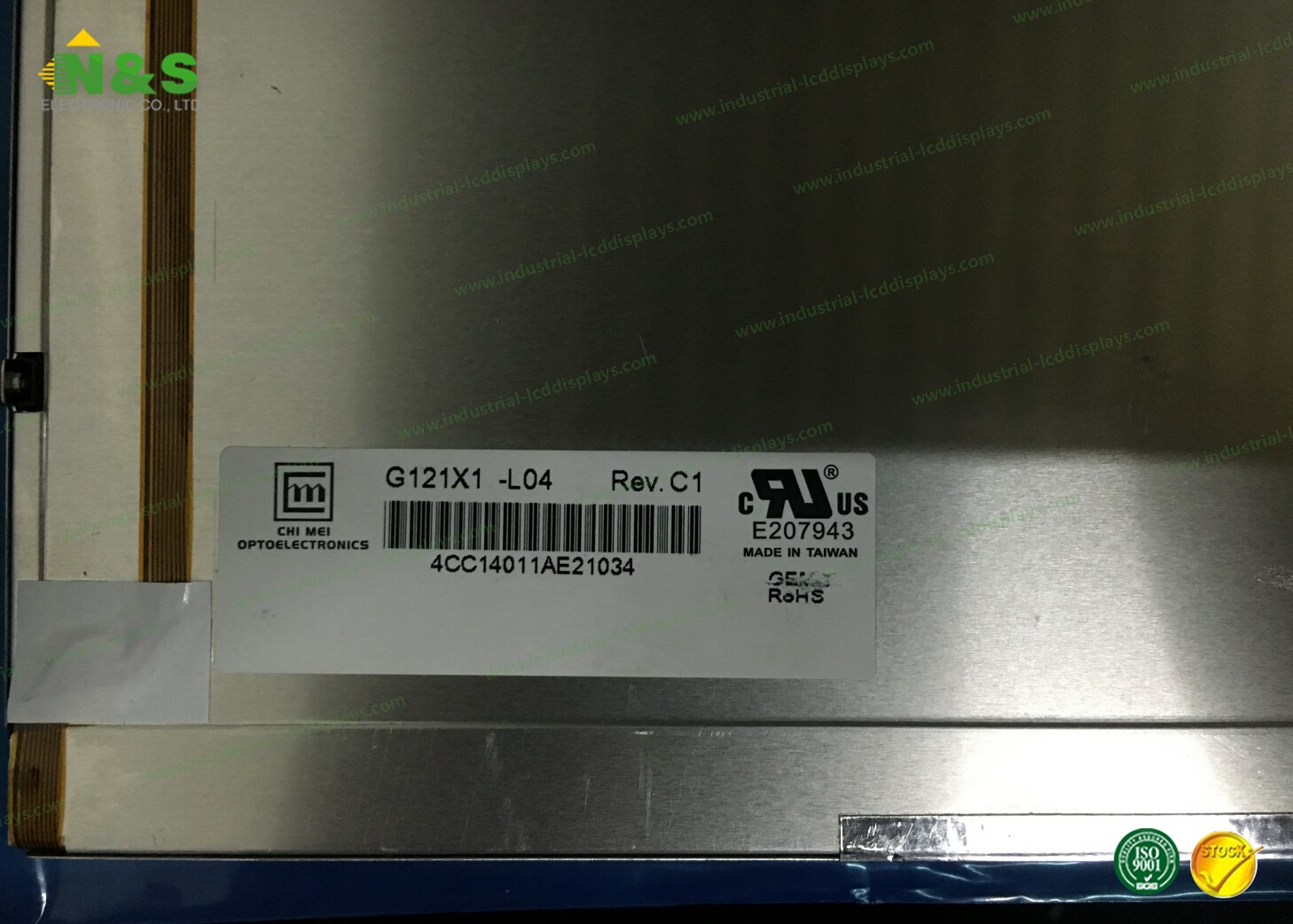

    Products G121X1-L04 Image
