5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module

    Buy cheap 5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module from wholesalers

    Buy cheap 5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module from wholesalers
    • Buy cheap 5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module from wholesalers
    • Buy cheap 5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module from wholesalers
    • Buy cheap 5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module from wholesalers

    5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : AT050TN33 V.1
    Certification : ISO9001
    Payment Terms : T/T, Western Union, MoneyGram, Paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module


    5.0 inch AT050TN33 V.1 Innolux LCD Panel Display , Automotive tft lcd module

    We Can Do for You:
    1) One-to-one service with efficient& professional support;
    2) Protection of your design and all your private information;
    3) We could supply hard-to-findLCD screen replacements;
    4) Quality stability, can to provide certification of products;
    5) Convenient payment methods: PayPal, T/T and Western Union;
    6) Speedy shipment: we could arrange the shipment within 1-3 business days.
    7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
    8) Unbeatable Prices: Wecontinuously strive to find ways of reducing our production costs, and passing the savings to you.

    INNOLUX AT050TN33 V.1 General Features

    Panel Brand :INNOLUX
    Panel Model :AT050TN33 V.1
    Panel Type :a-Si TFT-LCD , LCM
    Panel Size :5.0 inch
    Resolution :480(RGB)×272 , WQVGA
    Display Mode :TN, Normally White, Transmissive
    Active Area :110.88×62.832 mm
    Outline :120.7×75.8×3.3 mm
    Surface :Antiglare
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :500:1 (Typ.)
    Display Colors :16.7M (8-bit) , CIE1931 50%
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Lamp Type :6S2P WLED
    Signal Interface :Parallel RGB (1 ch, 8-bit) , 40 pins
    Input Voltage :3.3V (Typ.)


    Company Advantage:
    Kyocera offers touch panels for all of our TFT-LCD products, from 3.5" to 12.1". Our touch panel's provide high quality, reliability and durability. Factory installed with a full factory warranty.
    Custom touch solutions are also available from our Value Added assembly plant contains but not only for LCD Screen of Innolux ,AUO, Samsung, LG & Sharp.
    • Resistive touch panels
    • Film touch or glass touch panel options
    • Custom touch solutions
    • Optical bond P-cap touch screen solutions
    • On-cell touch

    INNOLUX AT050TN33 V.1 Optical Features

    Display Mode :TN, Normally White, Transmissive
    Brightness :350 cd/m² (Typ.)
    Contrast Ratio :500 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :50% NTSC (CIE1931)
    Response Time :10/15 (Typ.)(Tr/Td)
    Viewing Angle :70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :6 o'clock
    White color Chromaticity :Wx:0.310; Wy:0.330
    White Variation :1.33/1.43 (Typ./Max.)(9 points)

    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    V850DK1-QS1 Rev.C8Innolux85"3840×2160
    V850DK1-QS1 Rev.C2Innolux85"3840×2160
    V650DJ4-QS5 Rev.M1Innolux65"3840×2160
    N080ICP-G01 CELLInnolux8.0"800×1280
    DE080NA-01DInnolux8.0"800×480
    AT080YN01Innolux8.0"1024×600

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

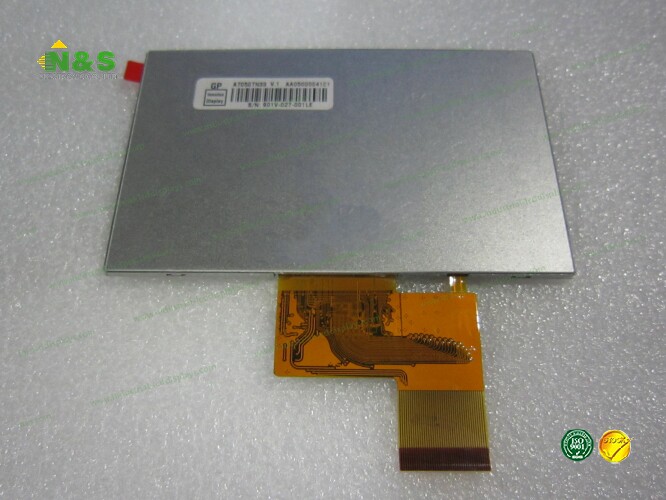

    Details Pictures for AT050TN33 V.1 LCD Display Panel
