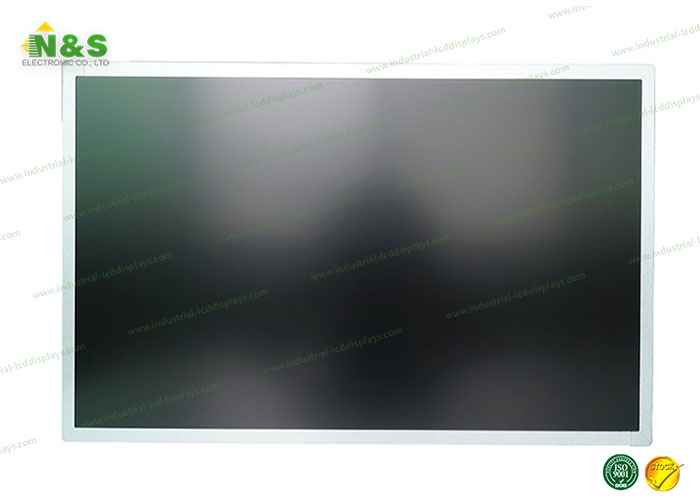

    19.5 inch MVA, Normally Black, Transmissive M200HJJ-L20 Innolux LCD Panel for 250 cd/m²

    Ask Lasest Price
    Brand Name : Innolux LCD Panel
    Model Number : M200HJJ-L20
    Certification : ISO9001
    Payment Terms : T/T, Western Union,paypal
    Supply Ability : 500PCS/DAY
    Delivery Time : 1-3 Working Days
    • Product Details
    • Company Profile

    19.5 inch MVA, Normally Black, Transmissive M200HJJ-L20 Innolux LCD Panel for 250 cd/m²

    19.5 inch MVA, Normally Black, Transmissive M200HJJ-L20 Innolux LCD Panel for 250 cd/m²


    N&S Delivery Details:
    1) We are shipping this item to worldwide.
    2) Our LCD panel orders processed within 1-3 working days of payment verification.
    3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
    5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

    6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

    7) Feel free to contact to us if there is any problems during the shipment process.


    Basic Info:


    Panel Brand : INNOLUX
    Panel Model : M200HJJ-L20
    Panel Type : a-Si TFT-LCD , Panel
    Panel Size : 19.5 inch
    Resolution : 1920(RGB)×1080 , FHD
    Display Mode : MVA, Normally Black, Transmissive
    Active Area : 434.88×238.68 mm
    Outline : 459.8×263×11.82 mm
    Surface : Antiglare (Haze 25%), Hard coating (3H)
    Brightness : 250 cd/m² (Typ.)
    Contrast Ratio : 3000:1 (Typ.)
    Display Colors : 16.7M (8-bit) , CIE1931 72%
    Response Time : 25 (Typ.)(Tr+Td)
    Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Frequency : 60Hz
    Lamp Type : WLED Without Driver
    Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
    Input Voltage : 5.0V (Typ.)


    Lamp Position :Edge light type (Left side)
    Lamp Type :WLED
    Lamp Life Time :30K(Min.) (Hours)
    Lamp Voltage :28.8±2.7V
    Lamp Current :100±6mA
    Lamps Power Consumption :11.52/12.6W (Typ./Max.)
    Interface Type :Connector

    ignal Category :LVDS
    Signal Class :LVDS (2 ch, 8-bit)
    Input Voltage for Panel :5.0V (Typ.)
    Input Current for Panel :0.7/0.83A (Typ./Max.)
    Panel Power Consumption :4.6/5.5W (Typ./Max.)
    Interface Type :Connector

    INNOLUX M200HJJ-L20 Optical Features

    Display Mode :MVA, Normally Black, Transmissive
    Brightness :250 cd/m² (Typ.)
    Contrast Ratio :3000 : 1 (Typ.) (Transmissive)
    Display Color :16.7M (8-bit)
    Color Gamut :72% NTSC (CIE1931)
    Response Time :25 (Typ.)(Tr+Td)
    Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
    Viewing Direction :Symmetry
    White color Chromaticity :Wx:0.313; Wy:0.329
    White Variation :1.33/1.39 (Typ./Max.)(9 points)

    INNOLUX M200HJJ-L20 Mechanical Features
    Panel Size : 19.5 inch
    Dot Resolution : 1920(RGB)×1080 (FHD)
    Pixel Configuration : RGB Vertical Stripe
    Pixel Density : 112 PPI
    Aspect Ratio : 16:9 (H:V)
    Form Factor : Flat Rectangle Display
    Dot Pitch : 0.0755×0.221 mm (H×V)
    Pixel Pitch : 0.2265×0.221 mm (H×V)
    Weight : 1.47±0.08Kgs
    Surface : Antiglare (Haze 25%), Hard coating (3H)
    Active Area : 434.88×238.68 mm (H×V)
    Bezel Area : 438.18×241.98 mm (H×V)
    Outline Dimension : 459.8×263 mm (H×V)
    Outline Depth : 8.87/11.82 (Typ./Max.) mm
    Holes & Brackets : Side mounting holes (7-M3) on right, up, down bezel
    Landscape or Portrait : Landscape type
    Touch Panel : Without


    Why N&S ?

    Company information:

    About Us:
    N&S Technology CO., LTD was established in 2010, Specialize in the LCD Panels sourcing & agency for the international trade.
    Our products have passed the certification of ISO9001 Quality Management System, we have a wealth of professional experience and strong sourcing team & international sales team. N&S always walk in the forefront of the industry in the fierce market competition, with unremitting efforts to achieve development!


    Below are our other LCD panels stock for your easy reference:

    Panel ModelBrandSizeResolution
    AE060RN01Innolux6.0"800×600
    F050A12-601Innolux5.0"480×854
    85C02502-Y21Innolux2.5"320×240
    V260B2-P03 Rev.C2Innolux26.0"1366×768
    G070YG1-P01Innolux7.0"800×480
    F03215-01ZInnolux3.2"360×480

    We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
