Brand Name : | Innolux LCD Panel |
Model Number : | G150XGE-L06 |
Certification : | ISO9001 |
Payment Terms : | T/T, Western Union, MoneyGram, Paypal |
Supply Ability : | 100 PCS PER DAY |
Delivery Time : | 1-3 Working Days |
1024*768 15'' Innolux G150XGE-L06 TFT LCD Display for Industrial Application
Primary Competitive Advantages:
What is our advantage?
1. Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
2. Delivery Quantity: 50-100 cartons shipped by DHL every week
3. Supply Ability: 100 pcs Panels per day.
4. Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
5. Warranty: 12 months.
INNOLUX G150XGE-L06 General Features
Active Area : | 304.1×228.1 mm |
Outline : | 326.5×253.5×12.06 mm |
Surface : | Antiglare, Hard coating (3H) |
Brightness : | 250 cd/m² (Typ.) |
Contrast Ratio : | 700:1 (Typ.) |
Display Colors : | 262K/16.2M (6-bit / 6-bit + FRC) , CIE1931 60% |
Response Time : | 5/11 (Typ.)(Tr/Td) |
Viewing Angle : | 45/45/25/45 (Typ.)(CR≥10) (L/R/U/D) |
Frequency : | 60Hz |
Lamp Type : | WLED Embedded (LED Driver) |
Signal Interface : | LVDS (1 ch, 6/8-bit) , 20 pins |
Input Voltage : | 3.3V (Typ.) |
INNOLUX G150XGE-L06 Mechanical Features
Panel Size : | 15.0 inch |
Dot Resolution : | 1024(RGB)×768 (XGA) |
Pixel Configuration : | RGB Vertical Stripe |
Pixel Density : | 85 PPI |
Aspect Ratio : | 4:3 (H:V) |
Form Factor : | Flat Rectangle Display |
Dot Pitch : | 0.099×0.297 mm (H×V) |
Pixel Pitch : | 0.297×0.297 mm (H×V) |
Weight : | 1.04/1.09Kgs (Typ./Max.) |
Surface : | Antiglare, Hard coating (3H) |
Active Area : | 304.1×228.1 mm (H×V) |
Bezel Area : | 307.4×231.3 mm (H×V) |
Outline Dimension : | 326.5×253.5 mm (H×V) |
Outline Depth : | 11.56±0.5 mm |
Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
Landscape or Portrait : | Landscape type |
Touch Panel : | Without |

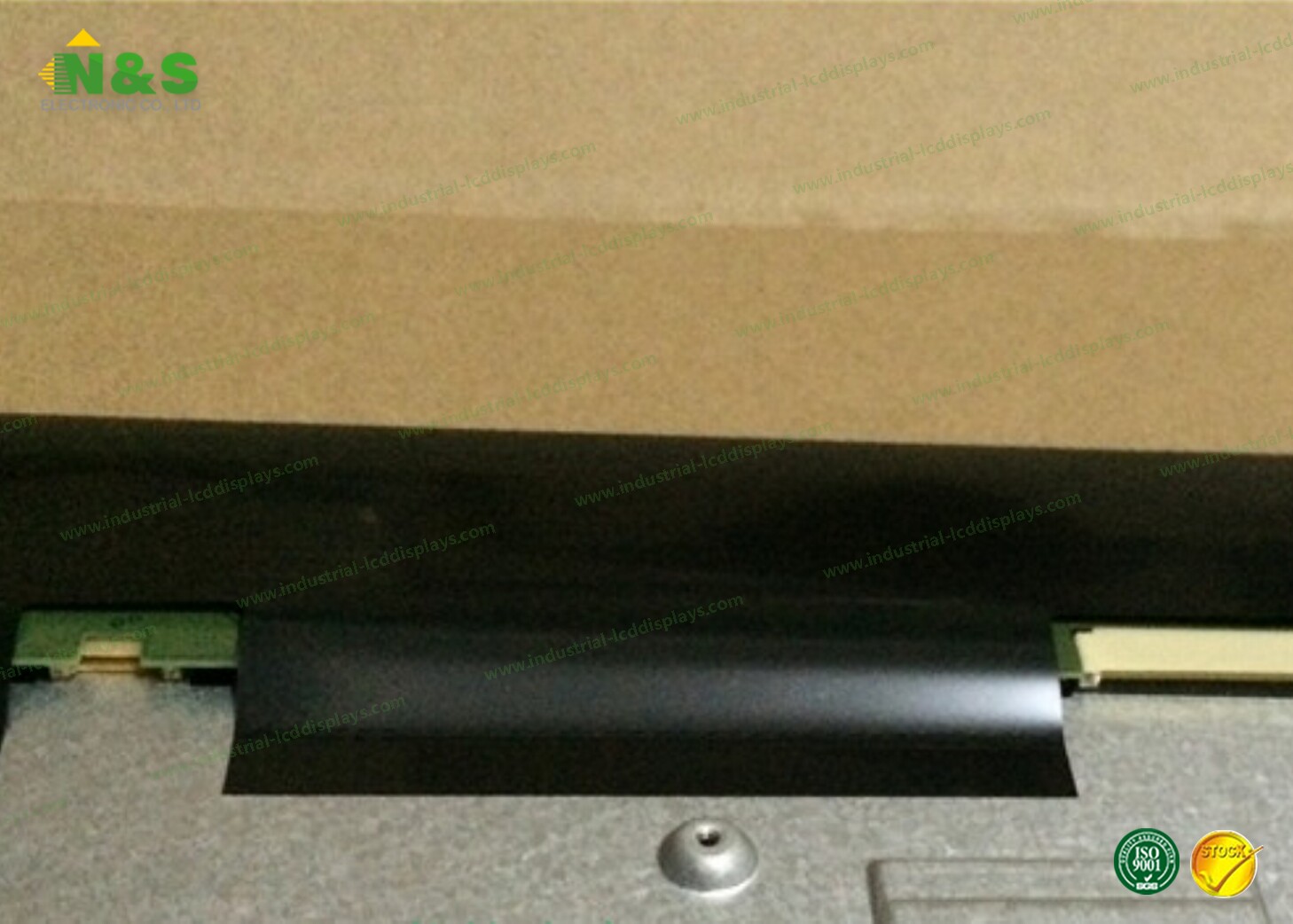

Products Photograph for INNOLUX G150XGE-L06
![]() |
